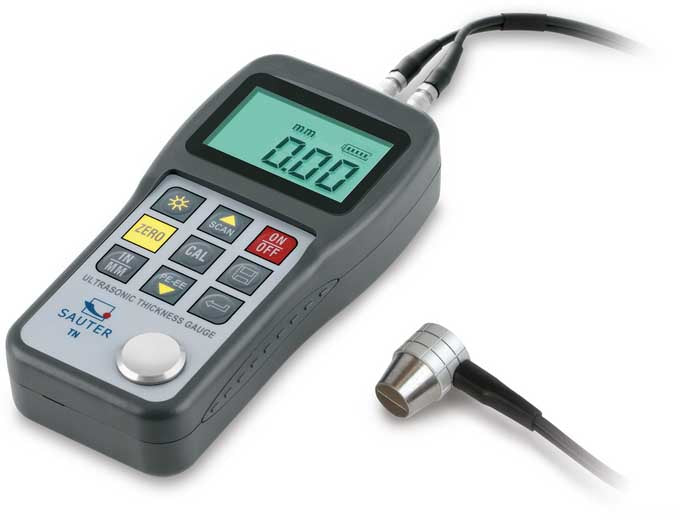

Kern Ultrasonic Thickness Gauge External TN 300-0.01US
SKU: TN 300-0.01US
Kern Ultrasonic Thickness Gauge External TN 300-0.01US
MSE Supplies offers a Ultrasonic Thickness Gauge External from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Portable measuring device for ultrasonic material thickness testing.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- External measuring head
- Data interface USB standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 14 mm) and ultrasound contact gel

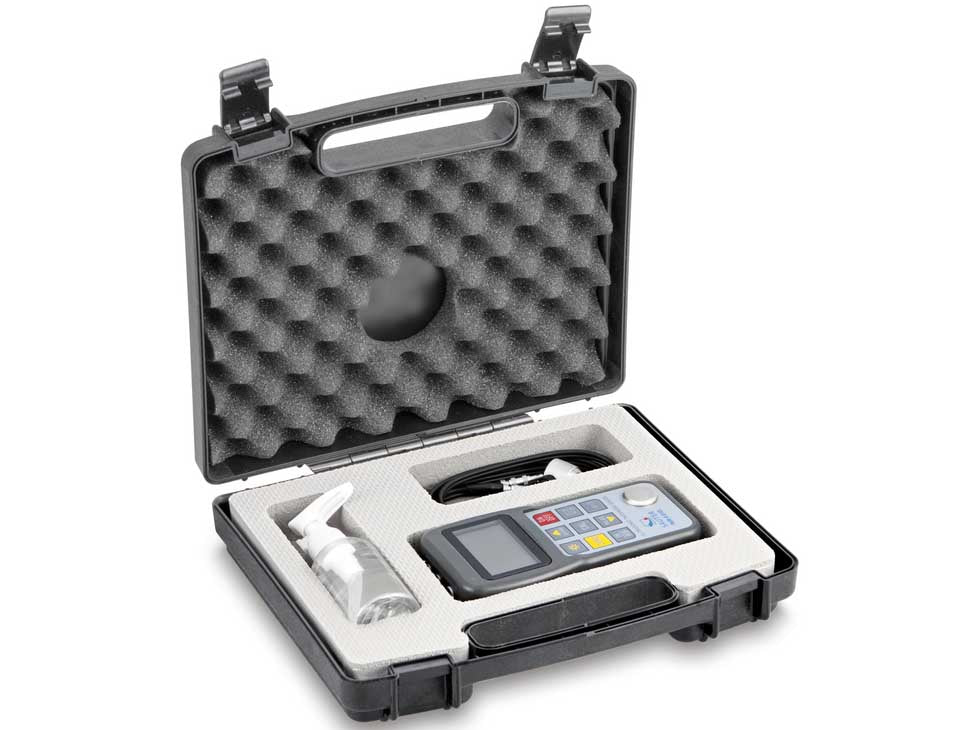

- Delivered in a robust carrying case.
Product Parameters
| Material thickness pulse-echo [Max] (mm) | 300 mm |
| Material thickness pulse-echo [Min] (mm) | 3 mm |
| Measuring range pulse-echo | 3 mm – 300 mm |
| Measuring range echo-echo | – |
| Readability material thickness [d] (mm) | 0,01 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 2,5 MHz |
| Battery | 2×1.5 V AA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Interfaces | USB-Device |
| Cable length | 0,9 m |
