KITTEC CLM 10 INDUSTRIAL-LINE CLM MODEL SERIES ANNEALING AND HARDENING KILNS, UP TO 1,300°C - MSE Supplies LLC

KITTEC CLM 10 Industrial-Line Annealing And Hardening Kilns, Up To 1,300°C

SKU: CLM10

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

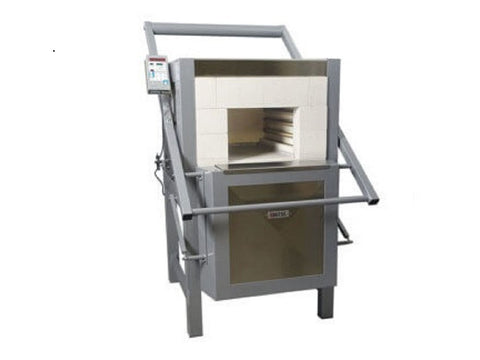

KITTEC CLM 10 Industrial-Line Annealing And Hardening Kilns, Up To 1,300°C

The CLM model series is designed for annealing and hardening in normal or protective gas atmosphere operation. The heating elements of the CLM kilns are on support bars. The multi-layer insulation structure guarantees low energy consumption during annealing and hardening.
The steel frame is extremely robust, and the housing design with rear ventilation provides excellent corrosion protection. The use of stainless steel supports this protection to a considerable extent. The low surface load of the Kanthal heating elements leads to less wear and tear and a long service life.

Further options of model series CLM:

  • Kanthal heating elements on support bars in the base and at both sides
  • High-quality and innovative five-layer premium insulation for low energy consumption and the fastest heating, also in the upper temperature range.
  • Stable stainless steel structure
  • Hearth heating covered and protected by SiC plate
  • Central exhaust cowl at rear for exhaust pipe or hose
  • Heating element protection, 50 mm high at both sides
  • Stainless steel sheet as shelf space on top of the kiln door (up to CLM 90)
  • Lightweight refractory brick ASTM 26 in door frame reduces wear and tear
  • Perforated sheet metal on the kiln to prevent moisture build-up
  • Flexible door seal protects the brick lining
  • Kiln housing with rear ventilation protects from corrosion and lowers the outside temperature
  • Quiet switching procedures thanks to electronic semiconductor relay (up to CLM 30)
  • Heat shield as protection against heat radiation
  • Customised products possible at any time

Specifications:

Model CLM10
Form Chamber Kiln
Firing chamber width [mm] 250
Firing chamber depth [mm] 250
Firing chamber height [mm] 120
Volume [l] 8
External width [mm] 690
External depth [mm] 820
External height including base [mm] 720
Max. temperature [°C] 1300
Power [kW] 3,3
Voltage [V] 230 N~
Current [A] 15
Weight [kg] 135
