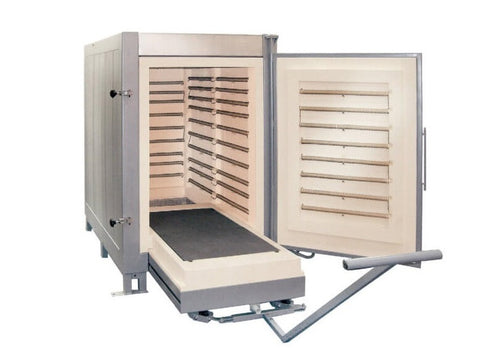

KITTEC CTH 500 Industrial-Line CTH Bogie Hearth Furnaces, Up To 1,320°C

The KITTEC CTH models have heating on support bars. The high-quality and complex design with support bars is the guarantee of a long service life. The five-sided all-round heating provides consistently uniform firing results thanks to optimum temperature distribution. High quality lightweight refractory bricks and the multi-layer rear insulation allow an absolutely even temperature distribution and a maximum firing temperature of 1,000 or 1,320°C.
Our added quality: All CTH bogie hearth furnaces are equipped with a 2-zone controller – the guarantee of optimum and uniform temperature distribution. The volume multiplied by 0.8 can be used as a guideline for the maximum loading weight. However, we can optionally provide higher loading capacities if required.

Further features of model series CTH:

• High-quality and innovative multi-layer premium insulation for the lowest energy consumption and the fastest heating up, even in the upper temperature range
• 2-zone controller, excellent temperature distribution
• Large exhaust flaps in the ceiling, can be opened manually
• Bogie hearth optionally on guided rollers or on rails
• Stable SiC ceiling plate, no contamination from above
• SiC bottom cover for the heating elements with a maximum of thermal conductivity
• Solid steel frame, powder-coated
• Kanthal heating elements with low surface load
• Extremely solid lightweight refractory brick ASTM 26 in regions with considerable mechanical stress
• Door can be opened wide (> 180°)
• Customised products possible at any time

Specifications:
