Leybold Trivac T Two-Stage Oil Sealed Rotary Vane Pump - MSE Supplies LLC

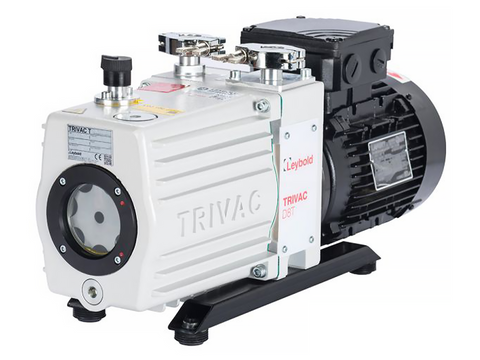

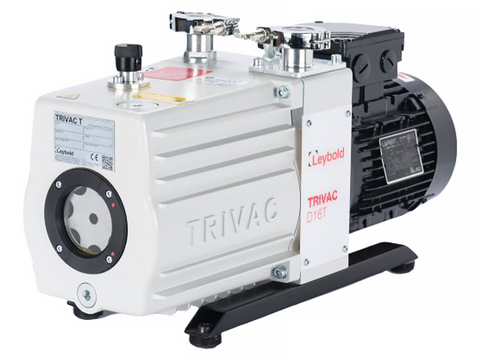

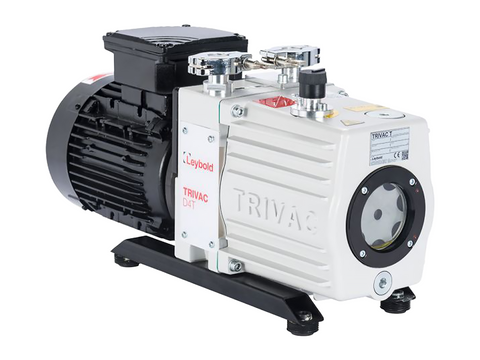

Leybold Trivac T Two-Stage Oil Sealed Rotary Vane Pump

SKU: 31236TE

  • $ 2,71595
  • Save $ 47800

Buy Leybold vacuum pumps from MSE Supplies at the best value.

Advantage:

  • Oil-sealed vacuum pump with integrated oil pump.
  • The pump is yellow metal free.
  • The TRIVAC T pump is equipped with a gas ballast and a hydro-pneumatic intake valve.
  • The pump must not be operated in explosion hazard areas.
  • Certifications of the pump: CE
  • RoHS compliant

    MSE Supplies is an authorized distributor of Leybold vacuum pumps.

    TRIVAC D4T D8T D16T
    Nominal pumping speed 50 Hz (m3/h) 5.3 9.2 17
    Nominal pumping speed 60 Hz (m3/h) 6.4 11 20.4
    Pumping speed 50 Hz (m3/h) 5 9 16.2
    Pumping speed 60 Hz (m3/h) 5.9 10 19
    Without gas ballast total (mbar / Torr) 5x10-3 / 3.75x10-3
    With gas ballast total (mbar / Torr) 2x10-2 / 1.5x10-2
    Connection flanges (DN) 16KF 16KF 25KF
    Water vapour tolerance (mbar) 15 15 20
    Water vapour capacity (g/h) 55 95 230
    Ambient temperature (°C) 12-45
    Noise level (50 Hz) dB (A) 58 58 60
    Oil capacity (mL) 600-900 700-1000 1000-1600
    Motor power (kW 50 / 60 Hz) 0.32 / 0.4 0.32 / 0.4 0.75/0.75
    AC motor power supply (V) single phase, 100-115 3 phase, 200-220 3 phase, 200-220
    Weight (kg / lbs.) 22 /48.5 23/50.7 37/81.6
