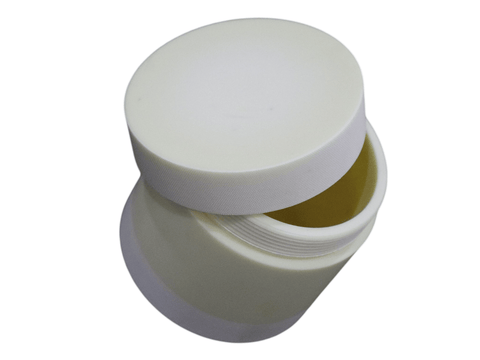

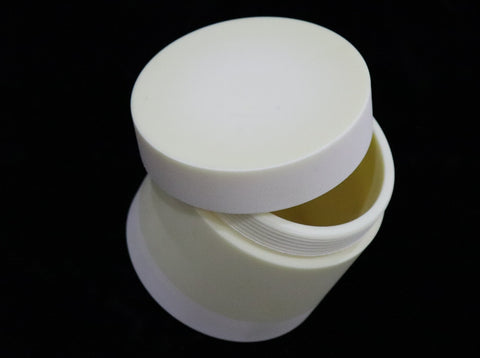

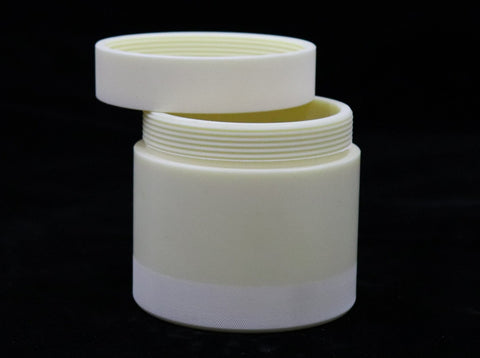

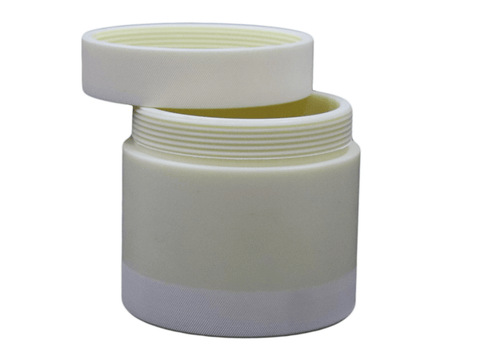

MSE PRO 0.5 L (500 ml) Nylon Roller Mill Grinding Jar

Specifications for Nylon Roller Mill Jars

• This family of Nylon grinding/milling jars are for roller ball mills.
• Each jar set includes grinding jar, screwed jar lid

• Milling media sold separately

• Anti-leak design
• Easy to pour and clean
• Low cost to work with. Thick wall allow long lasting milling.
• Net weight: 0.60 kg
• Dimensions:
• Inner diameter: 88 mm
• Outer diameter: 108 mm
• Inner Depth: 115 mm
• Height (without lid): 125 mm
• Height (including lid): 137 mm

Features of Nylon Roller Mill Jars

• SKU#: JA0418
• Material: PA6 /Nylon /Polyamide
• Jar Volume: 500 ml (0.5 L)
• Max Loading Capacity: 2/3 capacity of the grinding jar
• Specific Gravity: 1.14 g/cm³
• Abrasion Resistance: very good
• Color: milk white or light yellow
• Tensile Strength: > 60.0 MPa
• Bending Strength: 90.0 MPa
• Melting Point: 216 C
• Attachment: screwed lid
• Compatible Grinding Balls: stainless steel balls or zirconium oxide balls (should be ordered separately)
• Suitable for medium-hard, abrasive samples
