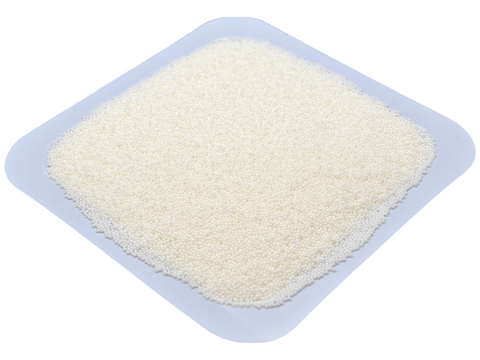

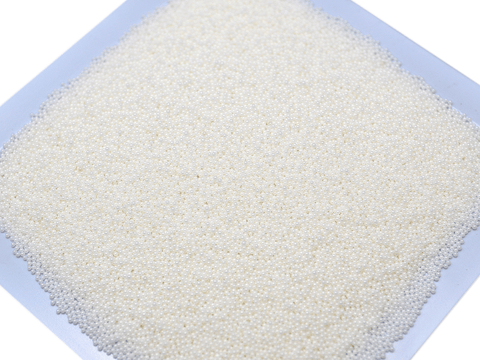

MSE PRO 0.8~1.0 mm Yttria Stabilized Zirconia YSZ Micro Milling Media, 1 kg - MSE Supplies LLC

MSE PRO 0.8~1.0 mm Yttria Stabilized Zirconia YSZ Micro Milling Media, 1 kg

SKU: BA0104

  • $ 9495
  • Save $ 1200

Description for Yttrium Stabilized Zirconium Oxide Grinding / Milling Media Beads for Micro Milling. Size: 0.8 ~ 1.0mm

Composition: 3mol% YSZ

Product Number: BA0104

For zirconia milling media with larger than 2mm diameter YSZ balls, visit the zirconia milling media product webpage.

  • Composition:
    • 94.6 wt%, Zirconium dioxide ZrO2 + Hafnium dioxide HfO2
    • 5.2 wt%, Yttrium oxide Y2O3
  • Quantity: 1kg - 0.8 ~ 1.0 mm YSZ balls, Approx.  436,800 balls
  • Specific Density: 6.0 +/- 0.05 g/cm3
  • Hardness: 1250 HV
  • Breaking load: 1500 N

Features for 0.8~1.0 mm Yttria Stabilized Zirconia Micro Milling Media

  • High purity: made of high grade yttria stabilized zirconia precursors in the nano-meter range, which is also chemically co-precipitated.
  • High density media ideal for high energy mills, maximizing throughput and productivity.
  • High fracture toughness and high wear resistance minimize the contamination of beads during high speed milling.
  • 15% superior to Ceria Stabilized Zirconia medias in wear rate through many tests.

Applications for 0.8~1.0 mm Yttria Stabilized Zirconia Micro Milling Media

These YSZ microbeads can used in milling and dispersion of following materials:
  • Coating, paints, printing and inkjet inks
  • Pigments and dyes
  • Pharmaceuticals
  • Food
  • Electronic materials and components e.g. CMP slurry, ceramic capacitors, lithium iron phosphate battery
  • Chemicals including Agrochemicals e.g. fungicides, insecticides
  • Minerals e.g. TiO2, GCC, and Zircon
  • Bio-tech (DNA & RNA isolation)
