MSE PRO 10x10x0.5mm Aluminum Nitride (AlN) Single Crystal Substrate
SKU: WA1922

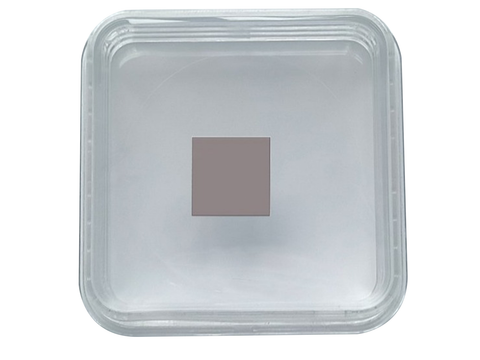

MSE PRO™ 10x10x0.5mm Aluminum Nitride (AlN) Single Crystal Substrate
MSE supplies offers high quality 10x10x0.5mm Aluminum Nitride (AlN) Single Crystal Substrate. It has one of the widest bandgap energy among group Ⅲ-Ⅴ semiconductors. It also present several other superior properties including high thermal conductivity, great chemical resistance, high electrical insulation, structural compatibility with III-nitrides (good for epitaxial growth), etc. It is widely used for RF transistors, UV LEDs, and electronic devices.
*Please note that we might ask you to fill in a declaration form according to the regulation.
Technical Specification:
| SKU# | WA1922 |
| Size | 10mmx10mm ± 0.5mm |
| Thickness | 500 -700 um |
| Crystal Type | 2H |
| Orientation |
{11-20} A-plane ± 0.5deg
|
|
High resolution XRD Rocking Curve, (11-20) Reflection
|
≤ 200 arcsec FWHM |
| Optical Absorbance @265nm | ≤ 30 cm-1 |
| Surface Roughness | Ra ≤ 0.5 nm on both sides |
| Edge Exclusion (mm) | 0.5 mm |
| TTV | ≤ 30 μm |
| Bow |
≤ 30 μm |
| Warp | ≤ 30 μm |
| Usable Area | ≥ 90 % |
Please contact us for customization or bulk order.
