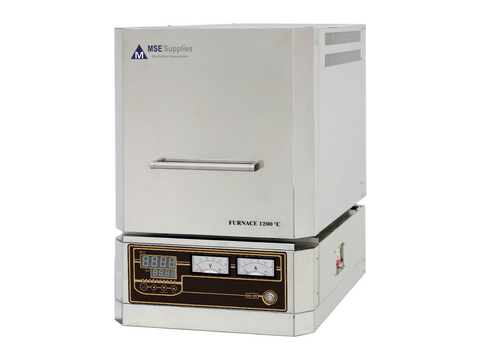

MSE PRO 1200°C Box Furnace B 36/12

SKU: MA0530

  • $ 8,24995
  • Save $ 91000

MSE PRO™ 1200°C Box Furnace B 36/12

MSE supplies offers a Box Furnace B 36/12 maximum operation temperature of 1200°C and capacity of 36L. With its convincing price/performance ratio and the fast heat-up rates, this box furnace is mainly used for sintering and oxidation experiments of ceramic, composite, metal, nano, functional, thermoelectric and crystal materials, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • High current protection guarantees long service life
  • High heating rate
  • Uniform temperature distribution
  • Easy-to-operate
  • With PID adjustment, fuzzy control, and self-tuning functions
  • Programmable controller with 50 segments
  • Can be connected to a laptop for remote control, real-time tracking, history recording and data output
  • Over-temperature protection and electric shock protection
  • The furnace will be powered off automatically if the door is open
  • Corrosion Resistance
  • Stainless steel embossed board

      Technical Data:

      Model B 36/12
      SKU# MA0530
      Power 8kW
      Voltage
      • 208V 60Hz three phase, plug is not included
      Capacity 36L
      Maximum Temperature 1200℃
      Time Needed for Tmax 20min
      Temperature Control Accuracy ±1℃
      Heating element High Resistance Electrothermal Alloy Wire OCr27A17Mo2
      Temperature Control Programmable temperature control system with 50 segments
      Chamber Dimension 400*300*300mm
      Outer Dimension 700*580*934mm
      Weight 130kg
      Warranty One-year limited warranty with lifetime support. Not responsible for damage caused by improper use.

      MSE Supplies offers various Box Furnaces with different sizes and Tmax . For more information, please contact us.
