MSE PRO 1200°C Double Heating Zone Vertical Tube Furnace VT 80/420/12

SKU: MA0488

  • $ 11,21995
  • Save $ 1,24305

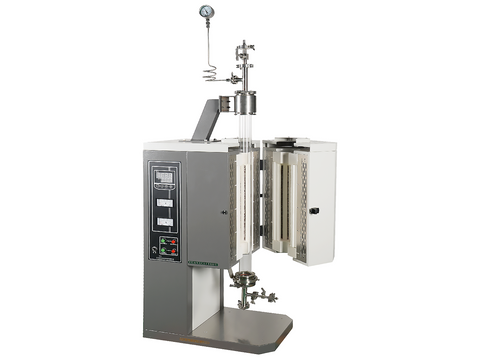

MSE PRO™ 1200°C Double Heating Zone Vertical Tube Furnace VT 80/420/12

MSE Supplies offers a Double Heating Zone Tube Furnace VT 80/420/12 with maximum working temperature of 1100°C and heating region of Ø80x420mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • High current protection guarantees long service life
  • High heating rate
  • Uniform temperature distribution
  • Easy-to-operate
  • With PID adjustment, fuzzy control, and self-tuning functions
  • Programmable controller with 50 segments
  • Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
  • Over-temperature protection and electric shock protection
  • Airtight and automatically adjust the pressure in the tube when pressure is high
  • Corrosion Resistance
  • Stainless steel embossed board



Technical Data:

Model VT 80/420/12
SKU MA0488
Maximum Temperature 1200℃
Working Temperature ≤1100℃
Heating Zone Double Temperature Zone
Furnace Tube Material Quartz Tube
Quartz Tube Dimension φ80/73*1000mm
Heating Zone Length 420mm
Constant Temperature Zone Length 280mm
Voltage 110V 30A Single Phase
Power 3.2 kW
Furnace Body Dimension 590*420*1130mm
Weight 85kg
Heating Elements High Resistance Electrothermal Alloy Wire OCr27A17Mo2
(Recommended) Heating Rate 0℃-1000℃≦10℃/min；
1000℃-1200℃≦5℃/min
Flange Structure Double-ring Sealing Clamp for Quick Connection
Temperature Control Accuracy ±1℃
Temperature Control Programmable temperature control system with 50 segments
Warranty One-year limited warranty with lifetime support. Not responsible for damage caused by improper use
Standard Configuration A set of gas circuit assembly (including a vacuum pressure gauge), a quartz tube, a hook and a pair of heat-resistant gloves

We offer Tube Furnaces with different sizes and Tmax. For more information, please contact us.
