MSE PRO™ 1200°C Economy Compact Tube Furnace T 44/200/12 - MSE Supplies LLC

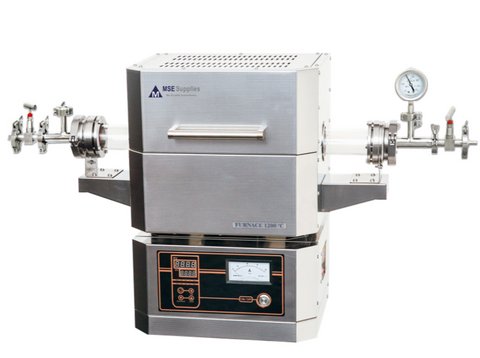

MSE PRO 1200°C Single Heating Zone Tube Furnace T 60/420/12

SKU: MA0492

  • $ 5,84995
  • Save $ 65000

MSE PRO™ 1200°C Single Heating Zone Tube Furnace T 60/420/12

MSE supplies offers a Economy Compact Tube Furnace T 60/420/12 with maximum operation temperature of 1100°C and heating region of Ø60x420mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • High current protection guarantees long service life
  • High heating rate
  • Uniform temperature distribution
  • Easy-to-operate
  • With PID adjustment, fuzzy control, and self-tuning functions
  • Programmable controller with 50 segments
  • Can be connected to a laptop for remote control, real-time tracking, history recording and data output
  • Over-temperature protection and electric shock protection
  • Airtight and automatically adjust the pressure in the tube when pressure is high
  • Corrosion Resistance
  • Stainless steel embossed board

Technical Data:

Model T 60/420/12
SKU#

MA0492 (Regular Control)

MA0493 (Touch Screen Control)
Maximum Temperature 1200℃
Working Temperature ≤1100℃
Temperature Zone Single Temperature Zone
Furnace Tube Material Quartz Tube
Quartz Tube Dimension φ60/52*1000
Heating Zone Length 420mm
Constant Temperature Zone Length 210mm
Voltage
  • 110V 30A 60Hz single phase as standard
Power 3kW
Furnace Body Dimension 360*580*565mm
Weight 75kg
Heating Elements High Resistance Electrothermal Alloy Wire OCr27A17Mo2
(Recommended) Heating Rate 0℃-1000℃≦10℃/min；
1000℃-1200℃≦5℃/min
Flange Structure Double-ring Sealing Clamp for Quick Connection
Temperature Control Accuracy ±1℃
Temperature Control Programmable temperature control system with 50 segments
Warranty One-year limited warranty with lifetime support. Not responsible for damage caused by improper use.
Standard Configuration A set of gas circuit assembly (including a vacuum pressure gauge), a quartz tube, two quartz plugs, a quartz boat, a hook and a pair of heat-resistant gloves.

MSE Supplies offers Tube Furnaces with different sizes and Tmax . For more information, please contact us.
