12T Electrical Cold Isostatic Press (CIP) with 22mm ID Vessel and Safety Shield - MSE Supplies LLC

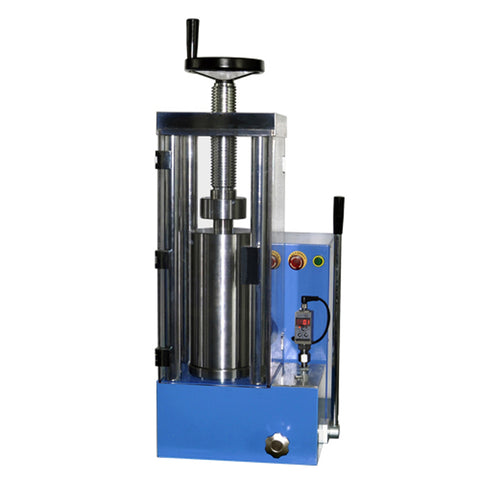

MSE PRO 12T Electrical Cold Isostatic Press (CIP) with 22mm ID Vessel and Safety Shield

SKU: PR0325

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

Cold isostatic pressing (CIP) is a method of compacting powdered materials into a solid homogeneous mass before machining or sintering. Cold isostatic pressing, in which the powder is subjected to equal pressure from all directions, followed by machining, is also in general use for wear and metal forming tools. It is commonly used for parts that are too large to be pressed in uniaxial presses and that do not require high precision in the sintered state. Sometimes referred to as hydrostatic pressing, it is a very simple process capable of producing high-integrity billets or preforms that exhibit little distortion or cracking when fired.

Compared with manual CIP, this electrical CIP can deliver a better pressure control.

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing.

If you need other maximum pressure or customized design, please contact MSE Supplies.

Specification:
    Product SKU # PR0325
    Pressure Range 0-12 Tons (0~17 MPa)
    Sample Stage Diameter 95 mm
    Max. Hydraulic Pressure in Chamber 300 Mpa
    Bottom Cylinder Traveling Distance 40 mm
    Sample Vessel ID 22 mm
    Max. Sample Size 22 mm Dia. x 70 mm
    Operation Temperature 10 - 40°C
    Safety Shield Material Plexiglass
    Pressure Vessel Material High Strength Alloy
    Dimensions
    405 x 240 x 720 mm
    Net Weight 110 kg
    Voltage Single phase 220V
    Warranty Limited one year warranty, not responsible for the damage caused by improper use
    Note Please clean the press after each use to ensure the best performance and longer life time



    Reference:

    1. Cold Isostatic Pressing, K.J. Morris, in Concise Encyclopedia of Advanced Ceramic Materials, 1991

    2. Production of Refractory Metal Powders, Oleg D. Neikov, ... Nikolay A. Yefimov, in Handbook of Non-Ferrous Metal Powders (Second Edition), 2019
