MSE PRO 150mm x 150mm Monolayer Graphene Film on Cu Foil Substrate - MSE Supplies LLC

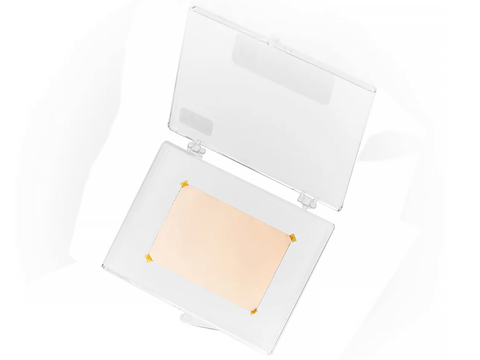

MSE PRO 150mm x 150mm Monolayer Graphene Film on Cu Foil Substrate

SKU: ME0414

  • $ 57995
  • Save $ 7205

MSE PRO™ 150mm x 150mm Monolayer Graphene Film on Cu Foil Substrate

This product consists a single-layer graphene grown on copper foil substrate.

SKU# ME0414

Graphene Film

  • Growth Method: CVD synthesis
  • Appearance (color): Transparent
  • Transparency: > 97 %
  • Appearance (form): Film
  • Coverage: > 95 %
  • Number of Graphene Layers: 1
  • Thickness (theoretical): 0.345 nm
  • Electron Mobility on SiO2/Si: 1500 cm2/V·s
  • Sheet Resistance on SiO2/Si:  350±40 Ohms/sq (1 cm x 1 cm)
  • Grain Size: Up to 20 um

Substrate Cu Foil

  • Thickness: 18 um
  • Pre-treated for easier bottom layer removal: Monolayer graphene on the back side of Copper is partially removed, but not completely, so an additional treatment like RIE is needed before transfer to eliminate the bottom layer totally

Applications

Flexible batteries, Electronics, Aerospace industry, MEMS and NEMS, Microactuators, Conductive coatings, Research

Publications

A: The backside of Copper is partially removed, but not completely, so an additional treatment like RIE is needed before transfer to eliminate the bottom layer totally

A: We recommend to keep the samples in vacuum or inert atmosphere if you are not going to use them in a while, in order to avoid copper oxidation.

A: The copper used for growing graphene is polycrystalline, mainly <110> orientation is present. To determine the copper orientation we have to do XRD analysis.

MSE Supplies guarantees the high quality and best price on the market for our graphene products. Buying graphene products from MSE Supplies will save you ~50% or more compared to prices listed by other re-sellers such as Sigma-Aldrich.
