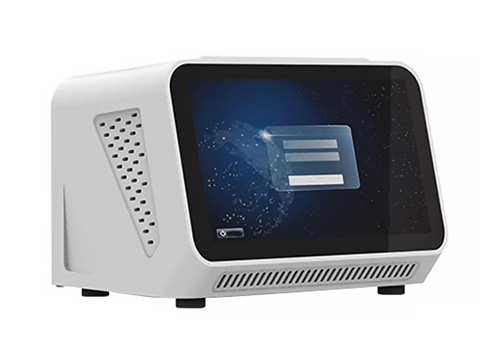

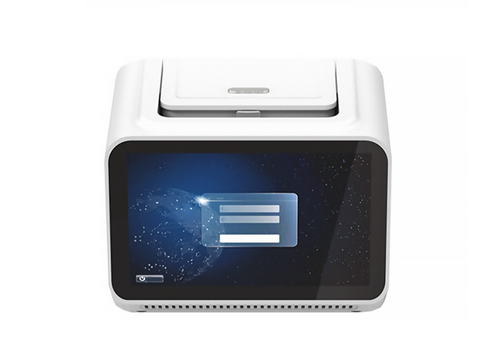

MSE PRO 16-Well Real Time PCR/qPCR System (2 Fluorescence Channels)
SKU: Y919H
MSE PRO 16-Well Real Time PCR/qPCR System (2 Fluorescence Channels)
This Real-time PCR/qPCR System combines advanced optics and powerful software for reliable and efficient real-time PCR. Designed for mobile, small laboratories, or on-site testing. With excellent performance and portability, its 2 fluorescence channels process 16 samples in one run, simplifying experiments with superior performance and portability.
-
Scanning all 16 wells in 1 seconds enhances lab efficiency.
-
Saving bench space and easily movable for on-site testing in your mobile lab, without requiring fluorescence recalibration.
-
Direct analysis and results can be printed directly when connected to a thermal printer.
- Providing relative quantification, absolute quantification, melting curve analysis, SNP analysis, and compatible with fluorescence analysis.
- Constantly connected and offering multiple connectivity options: WiFi, USB, and internet interface.
- Three control modes are available.
MSE Supplies offers a variant of Real Time PCR Systems. Please contact us for more information.
Applications:
The Real-Time PCR System finds wide application across scientific disciplines including molecular biology, genetics, microbiology, and medical diagnostics. It is instrumental in tasks such as gene expression analysis, pathogen detection, mutation analysis, SNP genotyping, viral load quantification, and environmental testing. By enabling sensitive, accurate, and high-throughput nucleic acid analysis, it serves as a crucial tool in advancing research and clinical diagnostics.
For Research Use Only (RUO). Not for use in diagnostic procedures.
Specifications:
Throughput | 1-16 samples |
Dyes |
Channel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE |
Dynamic Range | 1-1010 copies |
Excitation Range |
Channel 1: 465 nm Channel 2: 527 nm |
Detection Range |
Channel 1: 510 nm Channel 2: 563 nm |
Control Modes |
Mode 1: 7-inch touchscreen Mode 2: computer software Mode 3: remote control via Windows tablet |
Heating Method | Peltier |
Hot Lid Temperature | 40-110 ℃ |
Gradient Range | 1-40 °C |
Power Supply | 110 V / 60 Hz |
Dimensions (W x L x H) | 156 x 205 x 153 mm |
