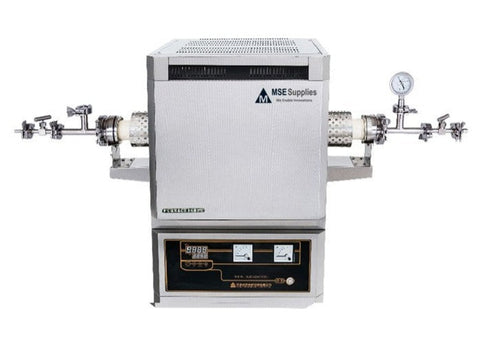

MSE PRO 1800°C High Temperature Tube Furnace T 60/350/18
MSE PRO™ 1800°C High Temperature Tube Furnace T 60/350/18
MSE Supplies offers a 1800°C Tube Furnace T 60/350/18 with maximum working temperature of 1800°C and heating region of Ø60x350mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- High current protection guarantees long service life
- High heating rate
- Uniform temperature distribution
- Easy-to-operate
- With PID adjustment, fuzzy control, and self-tuning functions
- Programmable controller with 50 segments
- Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
- Over-temperature protection and electric shock protection
- Airtight and automatically adjust the pressure in the tube when pressure is high
- Corrosion Resistance
- Stainless steel embossed board
Options:
- Vacuum control system and gas flow control system
Technical Data:
| Model | T 60/350/18 |
| SKU# |
MA0525 |
| Maximum Temperature | 1800℃ |
| Working Temperature | ≤1800℃ |
| Heating Zone | Single Temperature Zone |
| Furnace Tube Material | Corundum Tube |
| Quartz Tube Dimension | φ60/50*1000mm |
| Heating Zone Length | 350mm |
| Constant Temperature Zone Length | 120mm |
| Voltage |
208V Three Phase, plug is not included |
| Power | ~5 kW |
| Furnace Body Dimension | 560*1300*900mm |
| Weight | 220kg |
| Heating Elements | 1900℃ Silicon molybdenum bar |
| (Recommended) Heating Rate | 0℃-1200℃≦30℃/min; 1200℃-1400℃≦20℃/min 1400℃-1600℃≦10℃/min 1600℃-1800℃≦5℃/min |
| Flange Structure | Double-ring sealing clamp for quick connection |
| Temperature Control Accuracy | ±1℃ |
| Temperature Control | Programmable temperature control system with 50 segments |
| Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use |
| Standard Configuration | A set of gas circuit assembly (including a vacuum pressure gauge), a corundum tube, four corundum plugs, a corundum boat, a hook and a pair of heat-resistant gloves |
MSE Supplies offers Tube Furnaces with different sizes and Tmax . For more information, please contact us.
