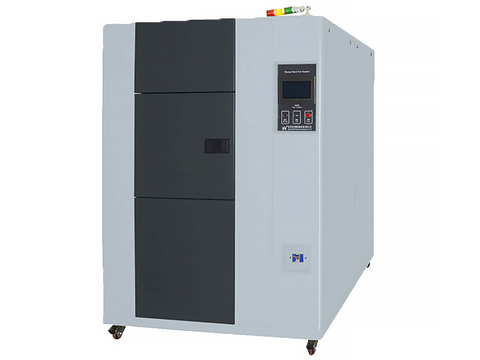

MSE PRO 250L Three-zone Thermal Shock Test Chamber for Battery and Electronic Research, -40 ℃ ~ +150 ℃
SKU: MA2213
MSE PRO™ 250L Three-zone Thermal Shock Test Chamber for Battery and Electronic Research, -40 ℃ ~ +150 ℃
MSE Supplies offers a thermal shock test chamber. This chamber is designed for conducting highly accelerated stress tests (HAST) on electrical and electronic components. It allows for quick temperature changes through direct specimen transfer between the hot and cold zones, making it ideal for thermal shock testing, also known as the Environment Stress Screen test. It is frequently utilized in laboratory and product manufacturing settings to verify product qualification and reliability. A cooling tower is needed for this product, please contact us for recommendation.
Technical Specifications:
| Product SKU# | MA2213 |
| Temperature Range | -40 ℃ ~ +150 ℃, can be customized |
| Pre-cooling Zone Temperature | -40 ℃ ~ -10 ℃ |
| Pre-heating Zone Temperature | +50 ℃ ~ +150 ℃ |
| Temperature Cooling Rate | -40 ℃ ~ -10 ℃ < 30 min |
| Temperature Heating Rate | +50 ℃ ~ +150 ℃ < 30 min |
| Temperature Variation | ≤ ± 0.5 ℃ |
| High Low Temperature Exposure Time | < 30 min |
| Temperature Recovery Time | ≤ 5 min |
| Cooling Method | Water cooling (cooling tower is NOT included) |
| Control Mode | Touch screen programmable control PLC |
| Test Chamber Material | SUS304 polished stainless steel, 1.2 mm thickness |
| External Material | Flame retardant high strength PU polyurethane foam insulation material |
| Volume | 250 L |
| Chamber Dimensions (WxHxD) | 600 x 700 x 600 mm |
| Outside Dimensions (WxHxD) | 1550 x 2280 x 1800 mm |
| Power Supply | 208V Three Phase, can be customized |
| Weight | 800 kg |
MSE Supplies offers different types and capacities of the test chambers, please contact us to discuss your needs.
