MSE PRO 3 inch Sapphire Wafer C-Plane Single or Double Side Polish Al<sub>2</sub>O<sub>3</sub> Single Crystal - MSE Supplies LLC

MSE PRO 3 inch Sapphire Wafer C-Plane Single or Double Side Polish Al2O3 Single Crystal

SKU: WA0407

  • $ 7995
  • Save $ 1000

Sapphire Wafer, 3 inch, C-plane (0001), Prime Grade, Single or Double Side Polish Al2O3 Single Crystal

Customized sapphire wafers and windows are available upon request

  • Product SKU#: WA0407 for single side polished, WA0406 for double side polished (600um thickness), WA0428 for double side polished (430um thickness)
  • Material: High Purity >99.99% single crystal Al2O3

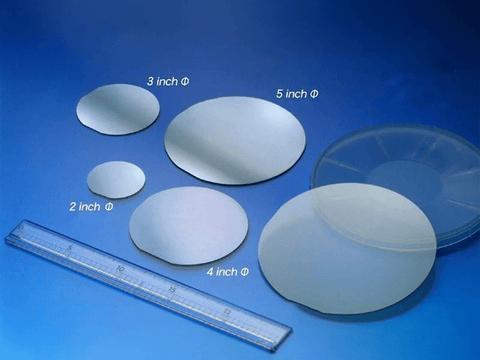

  • Diameter: 76.2 mm +/- 0.1 mm
  • Thickness: 440 um +/- 25 um (SSP) , 600 um or 430 um +/- 25 um (DSP)
  • Lattice Parameters: a=4.785 A, c=12.991 A
  • Density: 3.98 g/cm3
  • Orientation: C plane (0001) +/- 0.3 degree, R-plane (1-102), A-plane (11-20), M-plane (10-10) are available.

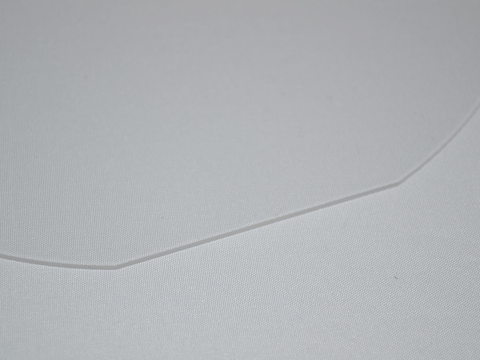

  • Primary flat orientation: A-plane +/- 0.3 degree
  • Primary flat length: 22.0 mm +/- 1 mm
  • Total Thickness Variation (TTV): <15 um
  • Bow: <15 um
  • Warp: <15 um
  • Thermal Expansion Coefficient: 6.66 x 10-6 / °C parallel to C axis, 5 x 10-6 /°C perpendicular to C axis
  • Dielectric Strength: 4.8 x 105 V/cm
  • Dielectric Constant: 11.5 (1 MHz) along C axis, 9.3 (1 MHz) perpendicular to C axis
  • Dielectric Loss Tangent (a.k.a. dissipation factor): less than 1 x 10-4
  • Thermal Conductivity: 42W/(m.K) at 20℃

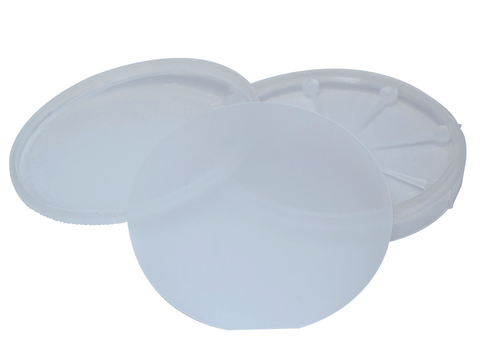

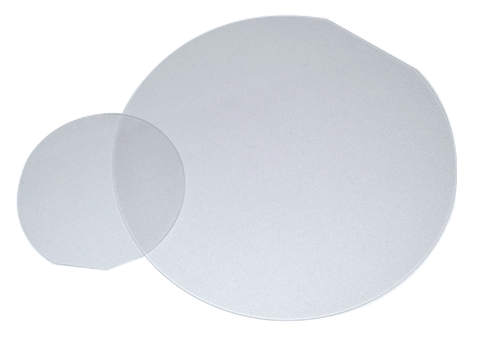

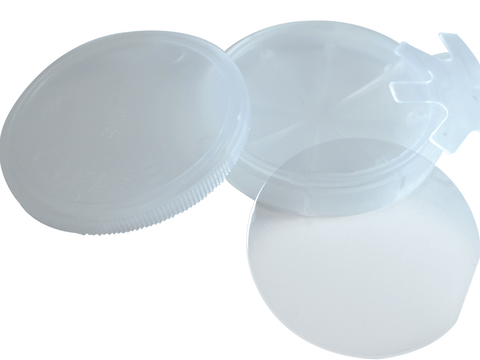

  • Polishing: single side polished (SSP) front side epi-ready surface Ra < 0.5 nm (AFM), back side fine-ground Ra = 0.8 ~ 1.2 um, or double side polished (DSP) both front and back sides epi-ready surface Ra < 0.5 nm (AFM)
