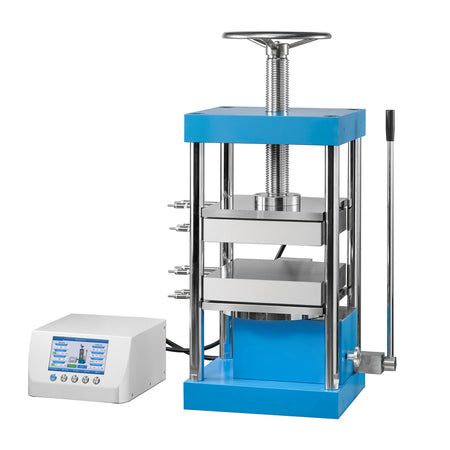

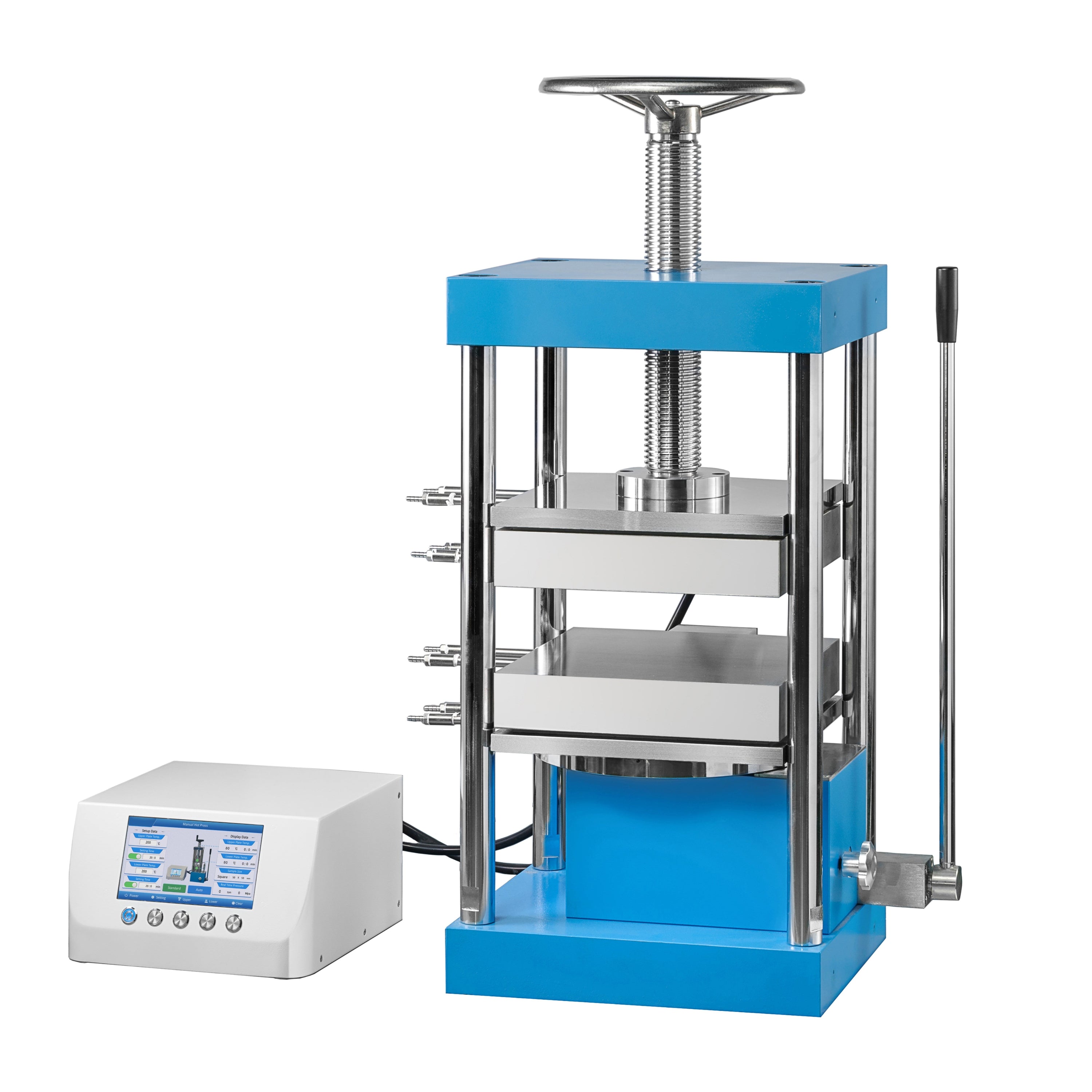

MSE PRO 30-Ton Split Type Electric Heated Lab Press (300°C) with Dual Flat Heating Plates (300x300 mm)
SKU: PR0370A
MSE PRO™ 30-Ton Split Type Electric Heated Lab Press (300°C) with Dual Flat Heating Plates (300x300 mm)
The MSE PRO™ 30T electric heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films. This benchtop heated lab press has two flat heating plates (300mm x 300mm), which can be heated up to 300 °C. The heating plate temperatures are individually controlled by digital temperature controller, which ensures the precise temperature control. The optional water-cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase with additional cost). This heated lab press also can be used as small laminator for polymer films.
Compared with manual heated lab press, this electric press has advantage of fast pressing and auto pressure replenishment, is very suitable for using in large tonnage applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also
supply pellet pressing dies which are compatible with this press for pellet pressing.
MSE Supplies can offer heated lab presses with a heating plate size from 100x100 mm to 400x400 mm. Please contact MSE Supplies for your heated lab press.
Brand | MSE PRO™ |
Product SKU # |
PR0370A without chiller PR0370B with chiller |
Pressure range | 0-30 Metric Tons |
Heating range | up to 300°C |
Pressure holding time | ≥1s (no time limited) |
Pressurization process | Program pressurization-Program holding-Timed pressure release |
Temperature control accuracy | 0.1°C |
Cooling mode | Nature cooling / Water cooling (Water chiller is optional with additional cost) |
Heating plate (MxN) | Dual 300mm x 300mm |
Hot press dimension (KxPxH) | 380mm x 350mm x 600mm |
Overall dimension including the optional chiller (LxWxH) | 700mm x 400mm x 600mm |
Net weight |
280kg without chiller 305kg with chiller |
Power supply | 110V/60Hz 3500W |
Warranty | Limited one year warranty, excluding damages caused by improper use |
Note | Please clean the press after each use to ensure the best performance and longer life time |
