MSE PRO 316L Stainless Steel Foil (4000 x 80 x 0.01 mm) as Substrate for Battery Research, Film Deposition and Catalysis - MSE Supplies LLC

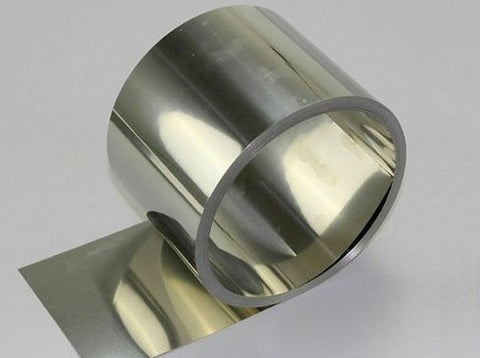

MSE PRO 316L Stainless Steel Foil (4000 x 80 x 0.01 mm) as Substrate for Battery Research, Film Deposition and Catalysis

SKU: BR0359

  • $ 13795
  • Save $ 1700

MSE PRO™ 316L Stainless Steel Foil (4000 x 80 x 0.01 mm) as Substrate for Battery Research, Film Deposition and Catalysis

Product details:

Stainless steel foil finds extensive application in the manufacturing of electronic products, including batteries, capacitors, connectors, and membranes. Its excellent conductivity, high dimensional accuracy, and good processing properties have garnered significant attention within the electronics industry.

Specifications:

Product SKU# BR0359
Package Size Per roll
Material Stainless Steel 316L
Dimensions 4000x80 mm (Customizable upon request)
Thickness 0.01 mm (Customizable upon request)
Yield Strength
 >470 N/mm2
Tensile Strength >780 N/mm2
Elongation
 >6%
Hardness
 400 HV
Chemical Composition %

C~0.025

Mn ~1.26

Si ~0.8

S ~0.003

P ~0.034

Cr ~17.63

Ni ~14.04

Mo ~2.4

Cu ~1.05

Sn~0.047

References:

[1] Xiaokai Hu, Zhitang Song, Weili Liu, Fei Qin, Zefang Zhang, Haibo Wang, Chemical mechanical polishing of stainless steel foil as flexible substrate, Applied Surface Science, Volume 258, Issue 15, 2012, Pages 5798-5802, ISSN 0169-4332.

[2] B. Meng, Y.Y. Zhang, C. Cheng, J.Q. Han, M. Wan, Effect of plastic anisotropy on microscale ductile fracture and microformability of stainless steel foil, International Journal of Mechanical Sciences, Volume 148, 2018, Pages 620-635, ISSN 0020-7403.
