3N (99.9%) Titanium Monoxide (TiO) Pieces and Tablets Evaporation Materials - MSE Supplies LLC

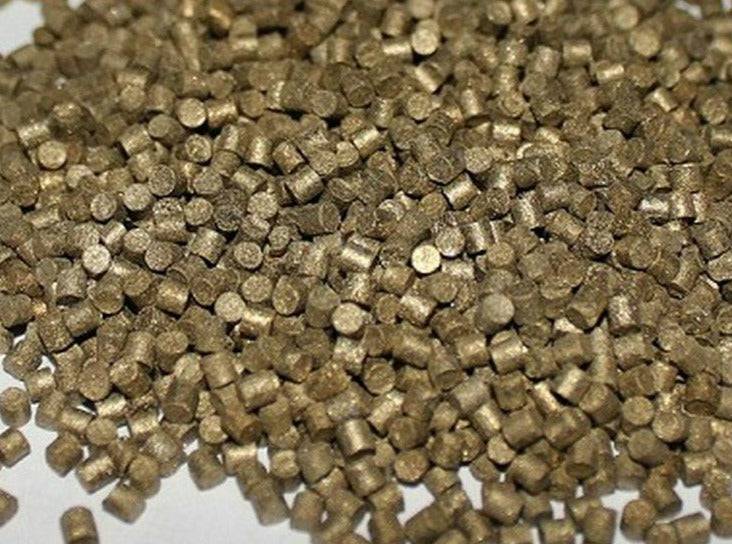

MSE PRO 3N (99.9%) Titanium Monoxide (TiO) Pieces and Tablets Evaporation Materials

SKU: TA4261

  • $ 15995
  • Save $ 2000

MSE PRO™ 3N (99.9%) Titanium Monoxide (TiO) Pieces and Tablets Evaporation Materials

Titanium Monoxide (TiO) is an inorganic dark crystalline solid. It is non-stoichiometric and this is caused by vacancies of either Ti or O in the defect rock salt structure. Titanium monoxide has a low electrical resistivity and exhibits high efficiency as a diffusion barrier against the interdiffusion of Al and Si. It is suggested that conductive TiO could be used as a thin film material for applications in microelectronic layered structures. Recently, increasing attention has been devoted to the investigation of the light absorption properties of titanium oxide in the visible light range.

The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders

Name Titanium Monoxide
Chemical Formula TiO
CAS# 12137-20-1
SKU#
  • TA4261: 3-6mm Pieces, 50g
  • TA4262: 3-6mm Pieces, 100g
  • TA4263: 8-9mm x 6-7mm Tablets, 50g
  • TA4264: 8-9mm x 6-7mm Tablets, 100g
Molecule Weight (g/mol) 63.88
Color/Appearance Dark, Crystalline Solid
Purity ≥99.9%, 3N
Melting Point (°C) 1,750
Theoretical Density (g/cm3) 4.95
E-Beam Good
Thermal Evaporation Techniques Boat:  W, Mo
Crucible:  Vitreous carbon
Temp. (°C) for Given Vap. Press. (Torr) 10-4:  ~1,500
E-Beam Crucible Liner Material Graphite, Tantalum

MSE Supplies offers a variety of crucibles for evaporation materials. We can customize the dimensions based on your requirements.

References

1. Titanium monoxide ultra-thin coatings evaporated onto polycrystalline copper films. Vacuum 76, no. 1 (2004): 13-17.

2. Optical constants of titanium monoxide TiO thin films. Journal of alloys and compounds 465, no. 1-2 (2008): 1-7.
