5 pcs of CR2016 Coin Cell Case With Two Sides Kapton Window For In-situ XRD Measurement - MSE Supplies LLC

MSE PRO 5 pcs of CR2016 Coin Cell Case With Two Sides Kapton Window For In-situ XRD Measurement

SKU: BR0306

  • $ 19995
  • Save $ 2400

Product Details:

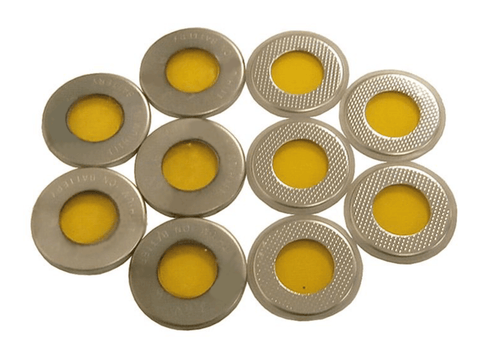

5 pcs of CR2016 Coin Cell Battery Case with Two Sides Kapton Window and Polypropylene Sealing O-ring. The Kapton window is designed for in-situ XRD measurement of battery material phase variations during charge and discharge.

Specifications
Product SKU# BR0306
Pack Size 5 pcs per pack

Material

Stainless Steel 304 case with two sides Kapton window and Polypropylene Sealing O-ring

Overall Dimensions
(Dia x Height)

CR2016 20mm x 1.6mm

Case Dimension

Cathode: O.D. = 20.0mm, I.D. = 19.4mm
Anode: O.D. = 19.3mm, I.D. = 16.9mm

Kapton Window Dia

10 mm
Kapton Window thickness

0.18 mm
