MSE PRO 500 ml Agate High Energy Planetary Ball Mill Grinding Jar - MSE Supplies LLC

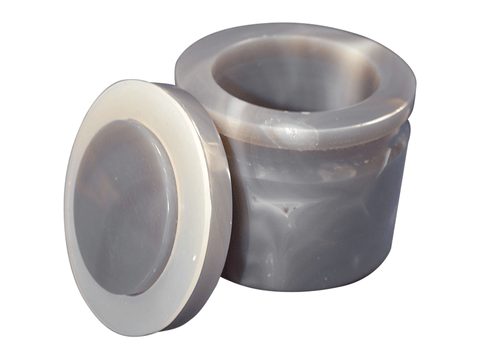

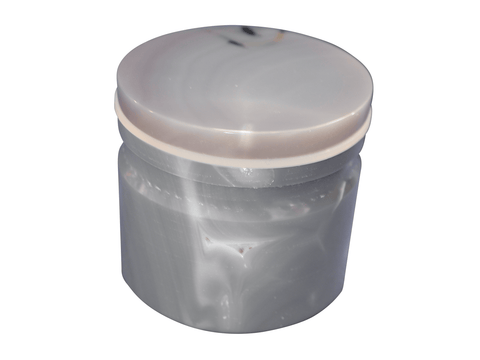

MSE PRO 500 ml Agate High Energy Planetary Ball Mill Grinding Jar

SKU: JA0507

  • $ 1,19995
  • Save $ 14400

Specifications for Agate Grinding Jars

    • Our milling/grinding jars are made of high purity natural agate (99.91% SiO2).
    • They are not only wear-resistant but also chemical resistant to acids (except HF) and solvent.
    • They have been widely used with minimized contamination.
    • Each jar set includes grinding jar, lid, rubber sealing gasket, and a milling media set (BA0744) specifically designed for this jar.
    • Agate milling/grinding jars have been popularly used in the fields, such as ceramics, electronics, light industry, paint, ink, medicine, food, geology, mining, chemical engineering.

    Agate Milling Jars for Planetary Mill Price

    Product #

    Volume (ml)

    Price (USD)

    JA0501

    50

    359

    JA0502

    100

    449

    JA0503

    150

    499

    JA0505

    250

    649

    JA0508

    300

    699

    JA0506

    400

    899

    JA0507

    500

    1199

    JA0504

    1000

    1599



    Did You Know?

    A stainless steel sleeve can be added to convert to rotary mill (roller mill) application. please contact us for specific requirement.

    Features of Agate Grinding Jars

      • High purity, low contamination to the samples
      • High cost-effective, low wear and long lifetime
      • High specific gravity, high grinding efficiency
      • Highly wear resistant to acid and solvent
      • Highly polished, smooth, easy to clean, low abrasion to the equipment
      • High mechanical strength, good toughness, impact resistance, no broken beads
      • Mainly used for lab planetary ball mill machines

      Technical Data for Agate Grinding Jars

        Model No.

        JA0507

        Main Material

        SiO2

        Density

        2.65 g/cm3

        Jar Volume

        50ml/100ml/150ml/250ml/300ml/400ml/500ml/1000ml

        Shape

        cylindrical

        Dimension

        as requested

        Ball Diameters

        3mm~20mm

        Hardness

        6.5~7.0 Mohs

        Suitable For

        soft to medium-hard samples

        Abrasion Resistance

        good

        Compatible Grinding Ball

        mixed agate ball (3mm~20mm)
        Element Analysis for Agate Grinding Jars
        General Specifications

        Main Material

        agate -SiO2

        Chemical Composition

        Element

        Share %

        Silicon Oxide -SiO2

        99.91

        Aluminium Oxide -Al2O3

        0.20

        Iron Oxide -Fe2O3

        0.01

        Calcium Oxide -CaO

        0.01

        Magnesium -Mg

        0.01

        Sodium Carbonate -Na2O

        0.20

        Potassium Carbonate -K2O

        0.01

        Manganese Oxide -MnO

        0.01

        Physical and Mechanical Properties

        Specific Gravity

        2.65 g/cm

        Hardness

        6.5~7 Mohs

        Choice of Grinding Jars & Balls

        In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen. For example, 250ml agate ball mill jar, normally is matched with 250g mixed agate grinding balls. However, the size of grinding jars and grinding balls should be determined experimentally if necessary.
