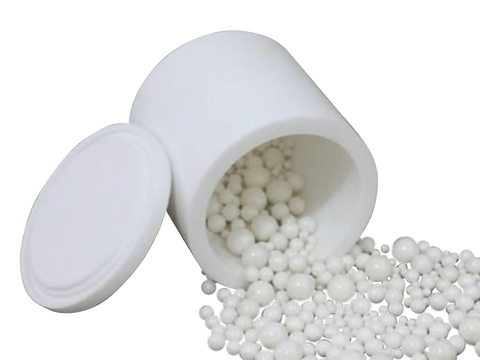

MSE PRO 500 ml Teflon Planetary Ball Mill Grinding Jar
SKU: JA0710
Description of Teflon Planetary Ball Mill Grinding Jars
- PTFE / Teflon milling/grinding jars are non-sticky.
- Teflon grinding jars have been widely used because of the minimal contamination and easy-to-clean benefits.
- Each jar set includes the grinding jar, lid, silicone sealing gasket.
-
Milling media sold separately
|
Product # |
Volume (ml) |
Price (USD) |
|
JA0709 |
50 |
215 |
|
JA0701 |
100 |
279 |
|
JA0705 |
250 |
409 |
|
JA0710 |
500 |
545 |
|
JA0703 |
1,000 |
875 |
|
JA0712 |
1,500 |
1495 |
|
JA0706 |
2,000 |
1755 |
|
JA0704 |
2,500 |
1695 |
|
JA0708 |
3,000 |
1865 |
|
JA0707 |
4,000 |
2195 |
|
JA0711 |
5,000 |
2529 |
|
JA0702 |
10,000 |
3075 |
Features of Teflon Planetary Ball Mill Grinding Jars
Product Number: JA0710
Material: PTFE /Teflon
Jar Volume: 500 ml (0.5 L)
Density: 2.14 g/cm3
Shape: Cylindrical, Outer diameter 109 mm, Inner diameter 88 mm, Height 105 mm
Color: White
Abrasion Resistance: Very good
Accessories: Lid and silicone sealing gasket
Grind Balls: Mixed Zirconia balls (should be ordered separately)
Suitable for: Caustic, abrasive samples
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.
Grinding Jar Ball Configurations
| Grinding Jar Volume | 100ml | 250ml | 500ml | 1000ml |
| Compatible Ball Weight | 84g | 210g | 420g | 840g |
| 5mm zirconia balls (0.39 g/pc) | 65 pcs | 162 pcs | ||
| 10mm zirconia balls (3.17 g/pc) | 16 pcs | 40 pcs | 40 pcs | 80 pcs |
| 15mm zirconia balls (10.71 g/pc) | 1 pc | 2 pcs | 24 pcs | 47 pcs |
| 20mm zirconia balls (25.39 g/pc) | 2 pcs | 4 pcs |
These values are recommendations for general use, the number of balls should be determined experimentally if necessary.
