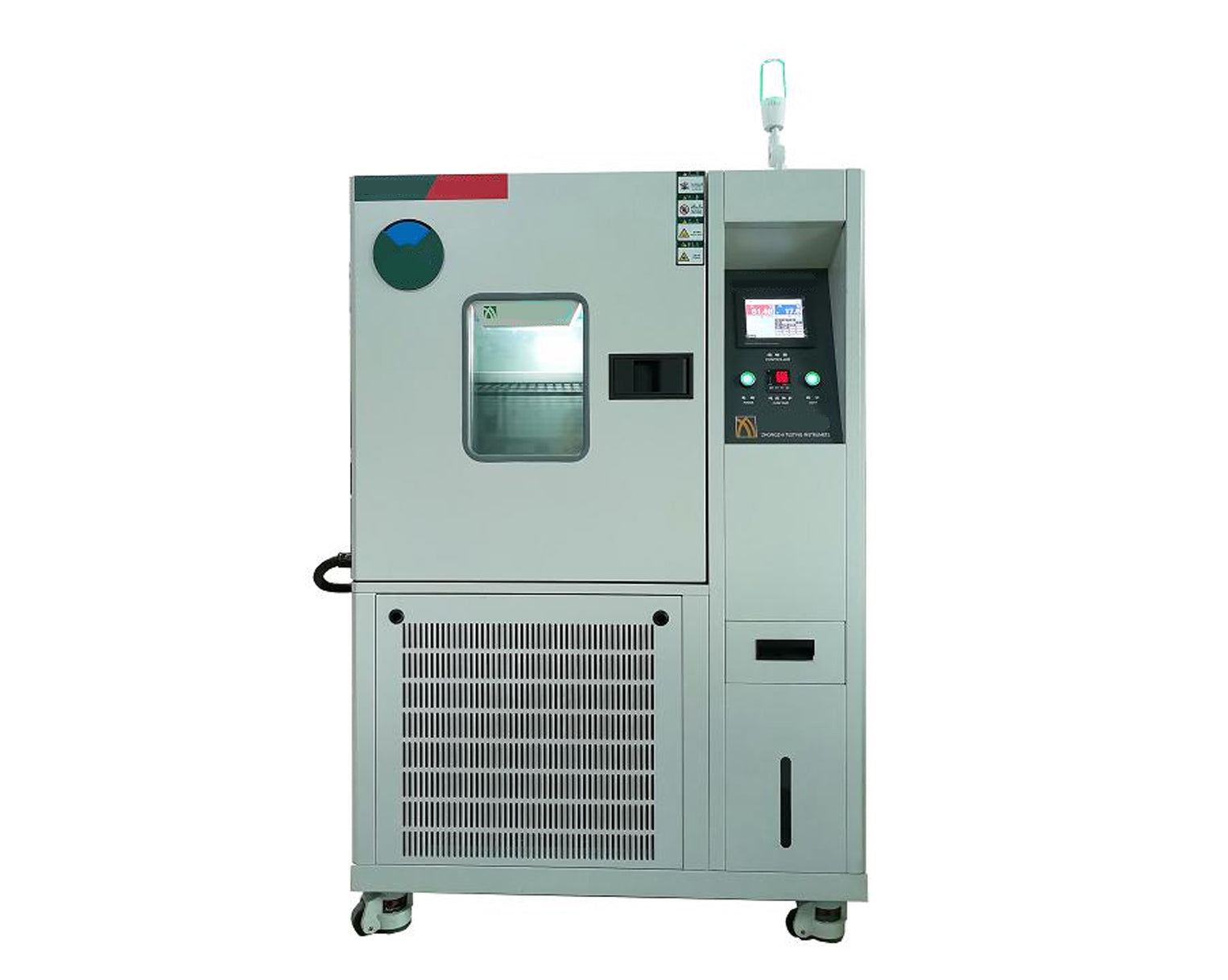

MSE PRO 80L Programmable Constant Temperature And Humidity Test Chamber
SKU: MA1938
MSE PRO™ 80L Programmable Constant Temperature And Humidity Test Chamber
The MSE PRO™ Constant Temperature And Humidity Test Chamber is suitable for high temperature, low temperature alternating environment, test the high temperature, cold resistance and possible damage life reduction. And it is suitable for the reliability test of industrial products, with the characteristics of temperature control accuracy and wide control range. the performance index meets the requirements of GB / T5170 "Low temperature, high temperature and constant temperature test equipment for electrical and electronic products.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers different type of Constant Temperature And Humidity Test Chambers. Please contact us for more information.
Technical Specifications：
| SKU | MA1938 |
| Internal Capacity | 80L |
| Temperature Range | -40~150℃ |
| Humidity Range |
20%~98% RH (as shown below), there is no heating load during the humidity test.
|
| Temperature Fluctuation | ≦±0.5℃ |
| Temperature Uniformity |
≦2.0℃(no-load)
|
|
Temperature Departure
|
≦±2.0℃(no-load) |
|
Relative Humidity Fluctuation
|
≦±2.5%R.H |
|
Humidity Deviation
|
≥75% RH, ≤+2-3%RH <75% RH, ≤±5%RH |
| Heating Rate | ≥3℃/min(full average empty load) |
| Cooling Rate | ≥1.2℃/min(under full average no-load condition) |
| Test Chamber Size (WxDxH) | 400x500x400mm |
|
Outer Dimensions
|
900x1400x1120mm |
| Voltage | 220V/60Hz |
