99.9% Nickel Metal Foil (100 x 100 x 0.1 mm, pack of 2) as Substrate for Battery Research, Film Deposition and Catalysis, MSE Supplies

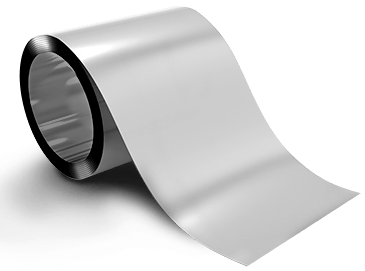

MSE PRO 99.9% Nickel Metal Foil (100 x 1000 x 0.01 mm) as Substrate for Battery Research, Film Deposition and Catalysis

SKU: BR0301

  • $ 14995
  • Save $ 1800

Product details:

Nickel (Ni) metal foil has good corrosion resistance, thermal and electronic conductivity. Nickel metal foil is widely used as a substrate for in-situ growth of other nickel based electrode materials for battery and supercapacitor applications. Nickel foil is a commonly used substrate for graphene fabrication by CVD. Other popular applications can be found in sensors, solar cells and catalysis.

Specifications
Product SKU# BR0301
CAS Number 7440-02-0
Material Nickel (Ni) ≥ 99.9% purity

Dimensions

100 mm (W) x 1000 mm (Length), 1 meter long

Thickness

0.01 mm (10 um)
Electrical Resistivity 6.97 μΩ-cm at 20°C
Boiling point 2732 °C (lit.)
Melting point 1453 °C (lit.)



References:

1.  Electrodeposition of Nickel Hydroxide Films on Nickel Foil and Its Electrochemical Performances for Supercapacitor, Int. J. Electrochem. Sci., 4 (2009) 1052 – 1062

2. Low-temperature synthesis of graphene on nickel foil by microwave plasma chemical vapor deposition, Appl. Phys. Lett. 98, 263106 (2011)

3. Surface-Nitrided Nickel with Bifunctional Structure As Low-Cost Counter Electrode for Dye-Sensitized Solar Cells, J. Phys. Chem. C 2010, 114, 31, 13397–13401
