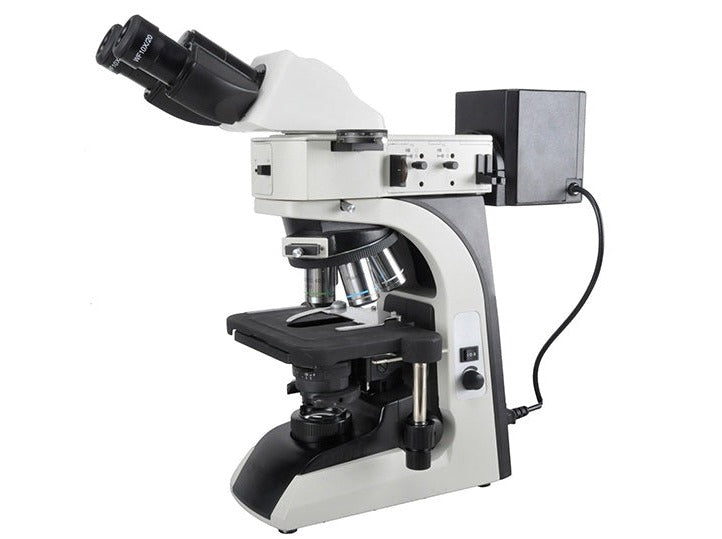

MSE PRO Advanced Binocular Metallurgical Microscope, Reflected and Transmitted Illumination System

MSE PRO Advanced Binocular Metallurgical Microscope, Reflected and Transmitted Illumination System

SKU: OM0021

  • $ 5,68995
  • Save $ 63300

MSE PRO™ Advanced Binocular Metallurgical Microscope, Reflected and Transmitted Illumination System

  • Infinite optical system provides excellent optical functions.
  • Laboratory metallurgical microscope, including bright field, dark field, polarization and DIC observation system.
  • Powerful transmitted and reflected system with Kohler illumination.

Applications:

MSE PRO™ Metallurgical Microscopes are high level metallurgical microscopes with Transmitted & Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Specifications:

Item

 Specification OM0021
Optical System Infinite Optical System ●
Viewing Head Siedentopf binocular viewing head, inclined at 30°, interpupillary distance 48-75mm ●
Siedentopf trinocular viewing head, inclined at 30°, interpupillary distance 48-75mm ○
Extra Wide Field Eyepiece WF10×/22 ●
WF10×/22 Eyepiece with scale of cross hair ●
EW15×/16 ○
EW20×/12 ○
Infinite Plan Achromatic Objective 5×/0.12/∞/- (BF/DF)       LWD 10mm ●
10×/0.25/∞/- (BF/DF)      LWD 10mm ●
20×/0.40/∞/0 (BF/DF)      LWD 5.0mm ●
50×/0.75/∞/0 (BF/DF)      LWD 1.3mm ●
100×/0.90(Dry)/∞/0 (BF/DF)   LWD 0.7mm ●
40×/0.65/∞/0.17 (BF)       WD 0.6mm ●
100×/1.25/∞/0.17 (BF)      WD 0.16mm ●
Nosepiece Backward quintuple nosepiece ●
Stage Double layer mechanical stage 216×150mm, Moving range 78×54mm ●
Focusing Coaxial coarse & fine adjustment, fine division 2μm, moving range 30mm ●
Kohler Illumination Reflected 12V/50W Halogen light, Center and brightness adjustable ●
Transmitted 12V/20W Halogen light, Center and brightness adjustable ●
Polarizer and analyzer ●
DIC attachment ○
Green, Gray and Frosted filter ●
Accessories Specimen Presser ○
Photo Adapter(Used to connect DSLR camera to the microscope) ○
0.5× Video adapter with C mount ●
Stage Micrometer 0.01mm ●

Note: ●Standard parts, ○Optional parts
