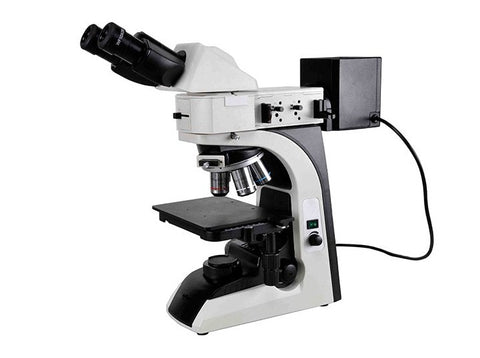

MSE PRO Advanced Binocular Metallurgical Microscope, Reflected Illumination System
SKU: OM0020
MSE PRO™ Advanced Binocular Metallurgical Microscope, Reflected Illumination System
- Widely used in industrial and mining enterprises, teaching, research and other fields.
- Precision instruments for inspection, analysis and research of electronic, metal and alloy materials, minerals, geology areas.
- Complete infinite long working distance metallographic objective.
- Provide bright field and polarized light observation.
- 5V-12V Low voltage input can ensure safe use, power bank can be used for power supply, which is more convenient for field inspection and power-short condition.
Applications:
MSE PRO™ metallurgical microscopes are high level metallurgical microscopes with Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.
Specifications:
| Item | Specification | OM0020 |
| Optical System | Infinite Optical System | ● |
| Viewing Head | Seidentopf binocular head, inclined at 30°, Rotatable 360°, interpupillary distance 48-75mm | ● |
| Eyepiece | WF10×/20mm (High eyepoint) | ● |
| WF10×/20mm with 0.1mm micrometer | ○ | |
| Long Working Distance Infinite Plan Objective (no cover glass) |
5×/0.13/∞/- WD 16.04mm | ● |
| 10×/0.25/∞/- WD 18.48mm | ● | |
| 20×/0.40/∞/0 WD 8.35mm | ○ | |
| 50×/0.70/∞/0 WD 1.95mm | ● | |
| 80×/0.80/∞/0 WD 0.85mm | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● |
| Backward Quintuple Nosepiece | ○ | |
| Stage | Double layer mechanical stage 200×140mm, moving range 76×52mm | ● |
| Focusing | Coaxial Coarse & Fine Focusing Knob, Travel Range: 26mm, Scale: 2um | ● |
| Illumination | Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, 12V/50W Halogen (Input voltage: 100V-240V) | ● |
| Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, 5W LED lamp (Input voltage: 100V-240V) | ○ | |
| Filters | Five-hole filter unit(blue, green, amber, grey, empty) | ● |
| Polarizing Set | Analyzer/ Polarizer | ○ |
| Specimen Presser | For metallurgical specimen preparation | ○ |
| Packing Size | 570mm×275mm×450mm, Gross Weight: 10.5kgs, Net Weight: 8 kgs | ● |
Note: ●Standard parts, ○Optional parts
