MSE PRO Air Sensitive XRD Sample Holder

SKU: LS0180

  • $ 5495
  • Save $ 700

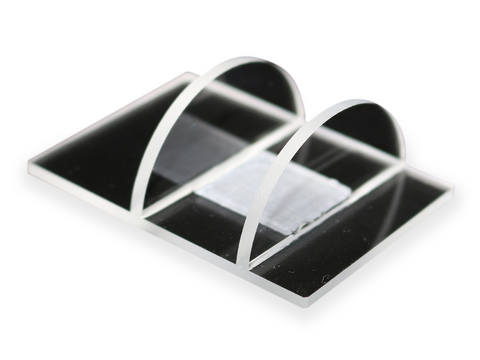

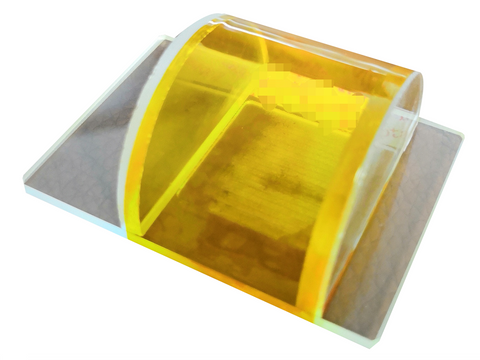

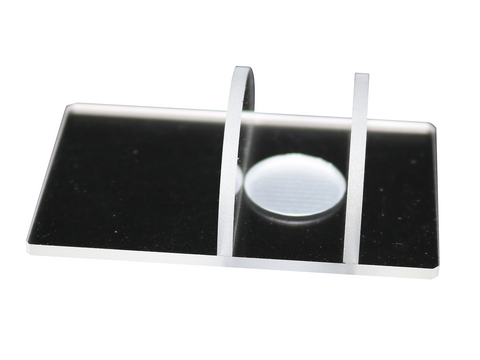

MSE PRO™ Air Sensitive XRD Sample Holder

Air Sensitive XRD Sample Holder provides an air-tight seal, safeguarding sensitive samples from exposure to air or moisture during X-ray diffraction experiments. For optimal performance, pair it with MSE PRO Sealing Tape

The sample holder provides a secure seal to protect the sample from direct exposure to oxygen or water in air, safeguarding it from degradation during the characterization process. With a ≥80% transmittance, the holder allows for X-rays to pass through, allowing for precise XRD measurements without interference. The sample holder is made from >99.99% (4N) pure silica, ensuring compatibility with a range of materials.

Applications:

  • Pharmaceutical Research: Characterizing air-sensitive drug compounds.
  • Materials Science: Investigating gas storage materials, catalysts, and hydrides.
  • Battery Research: Analyzing electrode materials prone to oxidation.
  • Environmental Studies: Studying materials affected by air or moisture.

Please contact us for customization and bulk order.

Powder XRD Characterization, Powder X-ray Diffraction Analytical Service is also available at MSE Supplies.

Specifications:

Pack: 1 piece/pack

Tape is not included.

SKU Etched Sample Chamber Dimensions (mm) Glass Dimensions (mm) Compatible XRD Instrument Maker
LS0180 15x15x0.5 35x50x1.6 Rigaku
LS0181 10x10x0.5 35x50x1.6 Rigaku
LS0182 20x20x0.5 35x50x1.6 Rigaku
LS0183 10x10x0.5 35x50x2 Universal use
LS0184 15x15x0.5 35x50x2 Universal use
LS0185 20x20x0.5 35x50x2 Universal use
LS0186 10 Dia. x 0.5 35x55x2 Shimadzu
LS0187 15 Dia. x 0.5 35x55x2 Shimadzu
LS0188 20 Dia. x 0.5 35x55x2 Shimadzu
LS0189 10x10x0.5 35x45x2 PANalytical
LS0190 15x15x0.5 35x45x2 PANalytical
LS0191 20x20x0.5 35x45x2 PANalytical
LS0192 10x10x0.5 35x50x2 Bruker
LS0193 15x15x0.5 35x50x2 Bruker
LS0194 20x20x0.5 35x50x2 Bruker
