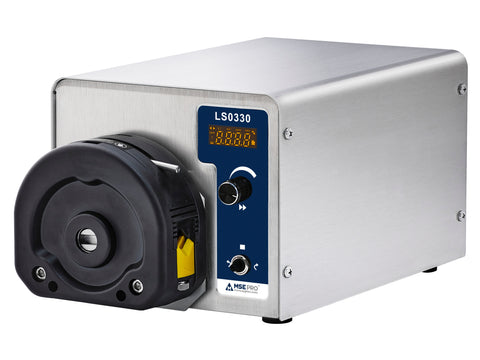

MSE PRO Basic Laboratory DC Brushless Motor Peristaltic Pump
SKU: LS0330
MSE PRO™ Basic Laboratory DC Brushless Motor Peristaltic Pump
MSE Supplies offers Basic Laboratory DC Brushless Motor Peristaltic Pumps. Its flow rate ranges from 2.1 to 6000 ml/min. Driven by a DC brushless motor, it features strong bidirectional torque and can be fitted with pump heads such as YZ series, TX series, KZ series, etc., accommodating various types of tubing. It supports RS485/MODBUS communication protocols, meeting different operational requirements of customers. The pump is widely used for transferring industrial fluids such as mechanical grinding and polishing liquids, electronic plating additives, chemical liquids, glue, and anti-static liquids.
This Peristaltic Pump comes with KZ25 pump head and 2 meters of 36# silicon tube (ID: 9.6mm and WT: 2.4mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Brand: MSE PRO™
Technical Specifications:
| SKU# | LS0330 |
| Speed Range | 30~600rpm (reversible) |
| Speed Resolution | 1rpm |
| Flow Rate | 2.1~6000mL/min |
| Speed Mode | Digital knob to adjust the speed. |
| Pump Head | KZ25 as standard (For other types please contact us.) |
| Standard tube accessory |
Length: 2 m Inner Diameter: 9.6 mm (36#) |
| Display Mode | 4-LED display |
| Power Supply | AC110V |
| Power Consumption | ＜100W |
| Suction Angle | 10°-720° (0° means no back suction) |
| Suction Speed | 10-300rpm |
| External Control Interface | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication. |
| Drive Size | 264×177×153 (mm) |
| Drive Weight | 4.8kg |
Flow Rates for Different Tubing Compatible with the KZ25 Pump Head
Applicable Tubing: 15#, 24#, 35#, 36#
| Tubing size (ID x Wall thickness) | Max. flow rate (600 rpm) |
| 4.8 mm x 1.6 mm (15#) | 1800 mL/min |
| 6.4 mm x 2.4 mm (24#) | 3120 mL/min |
| 7.9 mm x 2.4 mm (35#) | 4320 mL/min |
| 9.6 mm x 2.4 mm (36#) | 6000 mL/min |
