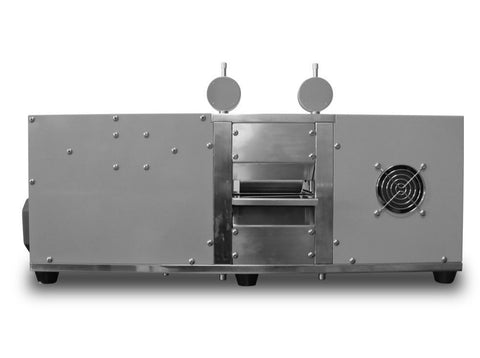

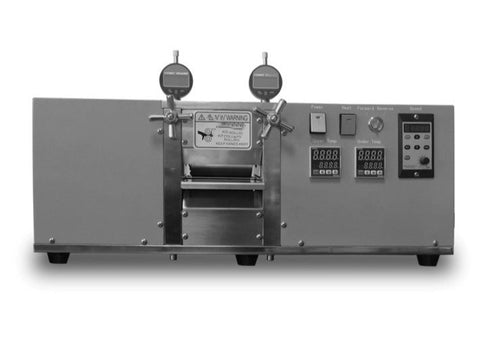

MSE PRO Benchtop Electric Hot Roller Press (up to 120°C) with Variable Speed for Electrode Sheet Calendering (Ar Glovebox Compatible)
SKU: BR0299
MSE Supplies offers a benchtop electrode calendering machine with variable speed. It is widely used for electrode sheet calendering after coating and drying to increase the density. The roller can be heated up to 120°C.
We also offer "Benchtop Electric Cold Roller Press with Variable Speed for Electrode Sheet Calendering (Ar Glovebox Compatible)" if heating is not necessary. The roller width and roller material can be customized upon request. Please contact us for customization or bulk orders.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| SKU | BR0299 | BR0299B | BR0299C |
| Voltage |
110V (Standard) 220V (Optional) |
110V (Standard) 220V (Optional) |
110V (Standard) 220V (Optional) |
| Roller Diameter | 96mm | 96mm | 96mm |
| Roller Width | Max 100mm | Max 200mm | Max 250mm |
| Roller Hardness | HRC62 | HRC62 | HRC62 |
| Roller Gap | 0~2mm | 0~2mm | 0~2mm |
| Roller Precision | ≤2um | ≤2um | ≤2um |
| Rolling Speed | 0~40mm/s | 0~40mm/s | 0~40mm/s |
| Temperature Range | up to 120°C | up to 120°C | up to 120°C |
| Dimension | 670*225*300mm | 700*220*330(mm) | 750*220*330(mm) |
| Weight | 70kg | 80kg | 90kg |
| Warranty | One year limited warranty with lifetime product support | ||
| Note | Roller width can be customized upon request: 150mm, 160mm, 200mm, 250mm | ||
