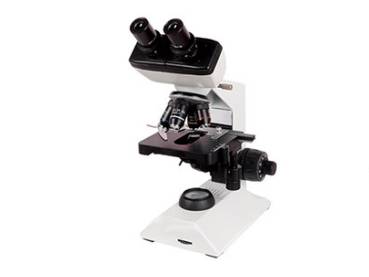

MSE PRO Binocular Laboratory Biological Microscope

MSE PRO Binocular Laboratory Biological Microscope

SKU: BB0375

  • $ 61995
  • Save $ 6900

MSE PRO™ Binocular Laboratory Biological Microscope

The MSE PRO™ Binocular Laboratory Biological Microscope is a versatile and robust optical system, suitable for advanced research, education, and industrial applications. It features multiple head options, including a monocular head inclined at 45°, sliding binocular and trinocular heads at 45°, and a dual observation head with 360° rotation for flexible viewing configurations. The ball-beating quadruple nosepiece supports high-quality achromatic objectives (4X, 10X, 40X, 100X oil), offering clear and sharp imaging for detailed analysis. Its double-layer mechanical stage (115x125mm) with a moving range of 30x50mm ensures precise sample manipulation. The ABBE NA1.25 condenser, with an adjustable iris diaphragm and filter, enhances illumination provided by a halogen lamp (6V/20W) or an energy-efficient 3W LED light. Packaged securely with foam, the MSE Pro is built to last and ensures reliable performance.

  • Flexible Viewing Options: Includes monocular, binocular, and trinocular heads, as well as dual observation capability with a 360° rotatable design.
  • Precision Optics: Achromatic objectives (4X, 10X, 40X, 100X oil) deliver high-resolution imaging with minimal aberration.
  • Advanced Stage Design: Double-layer mechanical stage (115x125mm) with smooth, precise movement for ease of sample positioning.
  • Enhanced Illumination: Equipped with a halogen lamp (6V/20W) and optional 3W LED lighting for customizable brightness and clarity.
  • Durable and Portable: Secure foam packaging ensures safe transport and long-lasting durability for various applications.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Biological Microscopes. Please contact us for more information.

Specifications:

SKU# Specification BB0375
Viewing Head Monocular Head inclined at 45° /
Dual Observation 45°, -90° inclined and vertical 360° rotatable /
Sliding Binocular Head inclined at 45° ✓
Compensation Free Binocular Head inclined at 30° /
Sliding Free Trinocular Head inclined at 45° /
Nosepiece  Ball Beating Quadruple Nosepiece ✓
Eyepiece Wide Field Plane-scope Eyepiece: WF10X 18 mm ✓
Objective Achromatic 4X, 10X, 40X (Spring) 100X (Spring, Oil) ✓
Stage Double Layer Mechanical Stage 115*125 mm moving Range 30*50 mm ✓
Condenser ABBE NA1.25 condenser with Iris Diaphragm & filter, rack & pinion adjustment ✓
Illumination Build-in Illumination, Halogen lamp 6V/20W, Power Supply 220V, 3W LED ✓
Power Supply AC110/220V ✓
Package Canon with foam ✓

Note: ✓ Standard Outfit, / without this feature
Note: 110V/220V for LED lamp, 220V only for halogen lamp
Optional: 2.0, 3.0 or 5.0 Megapixel. CMOS electronic eyepiece(only for Trinocular microscope).
