MSE PRO BK7 Broadband Dielectric HR Mirrors
SKU: AB7BM-0.5-4-7

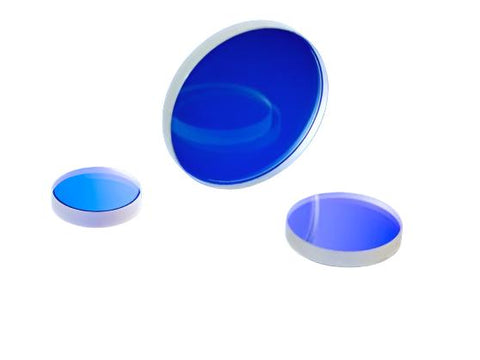

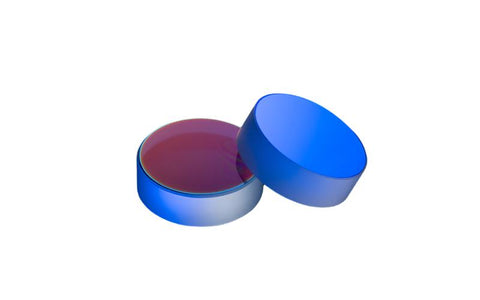

MSE PRO™ BK7 Broadband Dielectric HR Mirrors
MSE supplies offers BK7 Broadband Dielectric HR Mirrors. These mirrors provide high reflectance over a broad bandwidth, and are ideal for tunable laser and white light applications. They are intended for use at 45 incidence. Normal incidene is available on special request.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7, fine annealed |
| Diameter Tolerance | +0.0/-0.1 |
| Thickness | 4±0.1 |
| Parallelism | <3‘ |
| Flatness | λ/8 at 633nm |
| Surface Quality | 20-10 scratch-dig |
| Back Surface | commercial polish |
| Clear Aperture | 90% diameter |
| Average Reflectance |
Rave>99.5% for 45˚ angle of incidence |
| Wavelength (nm) | 400-700 |
| Dia | 12.7 |
