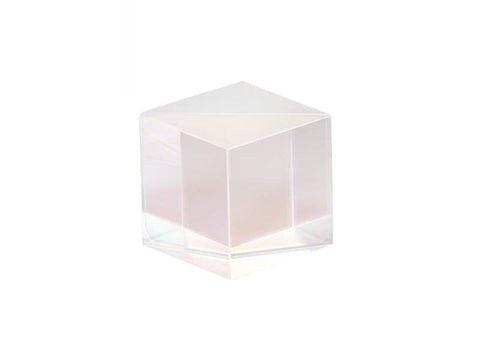

MSE PRO BK7 Laser Line Beamsplitter Cubes, 1/2"
SKU: AB7SC-0.5-488
MSE PRO™ BK7 Laser Line Beamsplitter Cubes, 1/2"
MSE supplies offers 1/2" BK7 Laser Line Beamsplitter Cubes. This is a conventional beamsplitter independent of polarization. The incoming light should be one of the following: 45 linearly polarized, circularly polarized or natural light, i.e. the s-polarized and p-polarized components should be equal to within 5% of each other. The outgoing beams are two partially polarized beams of about equal intensities. It is advised not to use in polarization optical system.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7 fine annealed optical glass |
| Diameter Tolerance | ±0.15mm |
| Flatness | λ/4 at 632.8nm |
| Surface Quality | 60-40 scratch-dig |
| Clear Aperture | >90% dimension |
| R/T ratio | 50/50±3% T-(Ts + Tp)/2, R= (Rs +Rp)/2 |
| Beam Deviation | 0º±3’ (T), 90º±5’(R) |
| Incidence angel | 0º±3’ |
| Coating |
Single wavelength partial reflectance on hypotenuse face. AR V-coating on all input and output surface, R<0.15% |
| Wavelength (nm) | 488 |
| a=b=c(nm) | 12.7 |
