MSE PRO BK7 Dichroic Plate Beamsplitters

MSE PRO BK7 Short Wave Dichroic Plate Beamsplitters

SKU: AB7BS-R-505

  • $ 49995
  • Save $ 6000

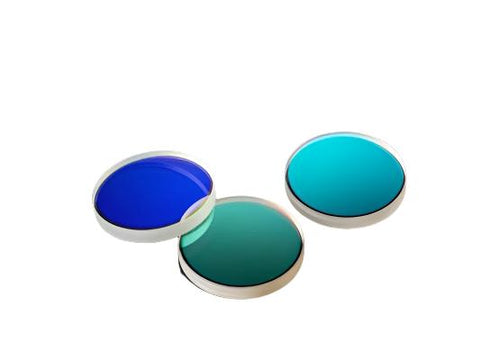

MSE PRO™ BK7 Short Wave Dichroic Plate Beamsplitters

MSE supplies offers BK7 Short Wave Dichroic Plate Beamsplitters. They allow NIR light to pass through and reflect visible light at 45 incident angle. They have a very steep transition between the region of transmission and reflection. They have a hard and dielectric coating using interference rather than absorption to isolate the spectral bands. Unlike colored glass filters the cut-off wavelength will shift to shorter wavelength with an increase in angle of incidence.

MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.

Technical Data:

Diameter Tolerance +0/-0.2
Thickness Tolerance 3.5+/-0.1
Incident Angle 45°
Flatness 5 fringes
Surface Quality 60-40 scratch-dig
Parallelism <3’
