Compact 2T Hydraulic Manual Crimper for All Types of Battery Coin Cells - MSE Supplies LLC

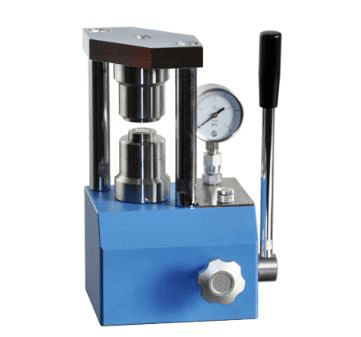

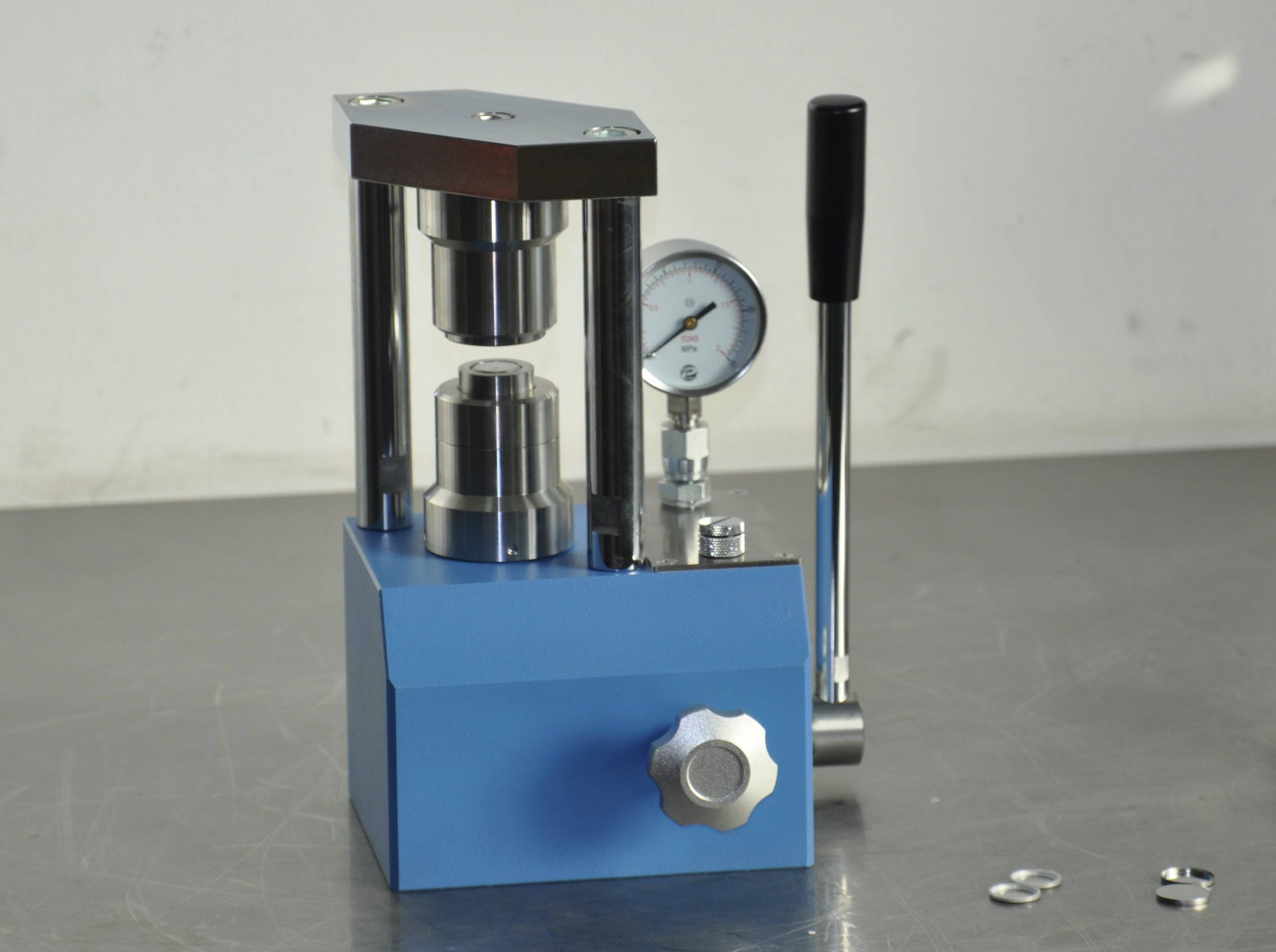

MSE PRO Compact 2T Hydraulic Manual Crimper for All Types of Battery Coin Cells

SKU: BR0236

  • $ 2,77595
  • Save $ 33400

PRODUCT SPECIFICATIONS

  • This compact battery coin cell crimper is a newly designed coin-cell sealing machine with light weight. It is suitable for sealing various types of coin cells such as CR2032, CR2025, and CR2016 by adjusting the sealing line without changing the die. It can also crimp CR2325, CR2450, AG3 and other special size cases with optional die sets.
  • In addition, customers can easily replace the original die for disassembling purpose.
  • Thanks to its compact design, it can easily pass the glove box chamber.

*If used in glove box, please periodically check the seal in case of any oil leak

    Product SKU # BR0236

    Crimping Die
    • One set of crimping die for CR2032, CR2025, and CR2016 coin cells included
    • Optional dies are available for crimping CR1220, CR2325, CR2450, AG3, AG5 (please contact us for a quote)
    • Optional dies are available for disassembling CR2032, CR2025, CR2016, CR1220, CR2325, CR2450, AG3, AG5 (please contact us for a quote)
    Pressure Range 0~2T
    Piston Diameter 32mm
    Sealing Pressure 0.8~1.2T
    Disassembling Pressure ≤0.4T
    Dimensions 210x165x290mm (LxWxH)
    Net Weight 12kg

    Warranty

    One year limited warranty with lifetime product support (Rusted and damaged parts due to improper storage condition or maintenance are excluded from product warranty)
