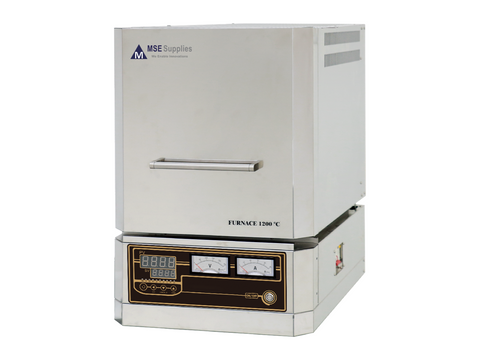

MSE PRO Economy Compact 1200°C Box Furnace B 1/12
SKU: MA0526
MSE PRO™ Economy Compact 1200°C Economy Box Furnace B 1/12
MSE supplies offers a Economy Box Furnace B 1/12 maximum operation temperature of 1200°C and capacity of 1L. With its convincing price/performance ratio and the fast heat-up rates, this box furnace is mainly used for sintering and oxidation experiments of ceramic, composite, metal, nano, functional, thermoelectric and crystal materials, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- High current protection guarantees long service life
- High heating rate
- Uniform temperature distribution
- Easy-to-operate
- With PID adjustment, fuzzy control, and self-tuning functions
- Programmable controller with 50 segments
- Can be connected to a laptop for remote control, real-time tracking, history recording and data output
- Over-temperature protection and electric shock protection
- The furnace will be powered off automatically if the door is open
- Corrosion Resistance
- Stainless steel embossed board
Technical Data:
Model | B 1/12 |
SKU# | MA0526 |
Power | 1.25kW |
Voltage |
208V 60Hz single phase (Plug is not included for safety concern) |
Capacity | 1L |
Maximum Temperature | 1200℃ |
Time Needed for Tmax | 20min |
Temperature Control Accuracy | ±1℃ |
Heating element | High Resistance Electrothermal Alloy Wire OCr27A17Mo2 |
Temperature Control | Programmable temperature control system with 50 segments |
Chamber Dimension | 110*100*100mm |
Outer Dimension | 280*278*507mm |
Weight | 11kg |
Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use. |
MSE Supplies offers Economy Box Furnaces with different sizes and Tmax . For more information, please contact us.
