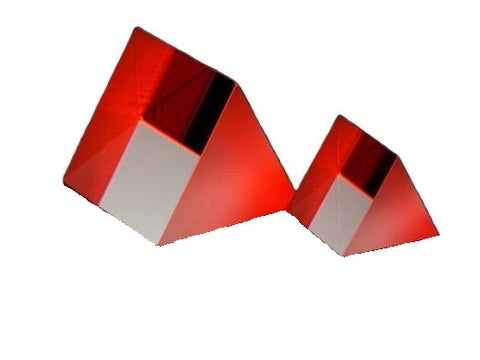

MSE PRO Equilateral SF11 Prisms with 1/4 Wave MgF<sub>2</sub> Coating@550nm

MSE PRO Equilateral SF11 Prisms with 1/4 Wave MgF2 Coating@550nm

SKU: ACSFEP5-10

  • $ 10995
  • Save $ 1300

MSE PRO™ Equilateral SF11 Prisms with 1/4 Wave MgF2 Coating@550nm

MSE supplies offers Equilateral SF11 Prisms with 1/4 Wave MgF2 Coating@550nm. An equilateral dispersing prism has an equilateral triangle in the cross section with the three sides of equal length. They are used for wavelength separation. A light ray is refracted twice, passing through the prism with total deviation denoted by qd top angle. Deviation is a function of refractive index, and hence wavelength. Angular dispersion is the difference in deviation for light rays having different wavelengths and varies with prism orientation.

MSE Supplies can offer a variety of optical elements, with different focal length and coating options. Please contact us for customization or bulk orders.

Technical Data:

Angles 60˚±2'
Material SF11
Flatness λ/4
Surface Quality 60-40 scratch-dig
Clear Aperture 90% surface area
Coatings 1/4 wave MgF2 coating at 550nm for all 3 surfaces
