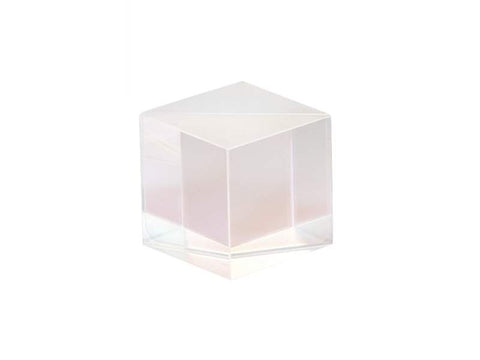

MSE PRO Fused Silica High Energy Polarizing Cube Beamsplitters
SKU: AFSBS-0.5-532
MSE PRO™ Fused Silica High Energy Polarizing Cube Beamsplitters
MSE supplies offers Fused Silica High Energy Polarizing Cube Beamsplitters. This product uses non-epoxy glue bonding to assemble the prism, and the beam splitting interface is an optical surface bonding contact, which can minimize the absorption and scattering losses and achieve a high resistance to light damage.
The four right-angle surfaces are coated with multi-layer anti-reflection film, and the beam splitting surface is coated with polarization film, and the extinction ratio can reach 2000:1.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Material | Fused Silica |
| Surface Flatness |
λ/4
|
| Beam Deviation (arcmin) | <3 |
| Extinction Ratio | 1000:1 |
| Type | Linear Polarizer |
| Surface Quality | 40-20 |
| Clear Aperture (%) | 90 |
| Wavelength(nm) | 532 |
| Tp | 95% |
| Rs | 99.5% |
| a=b=c(mm) | 12.7 |
| Threshold | >8J/cm2@532nm 10ns 10Hz |
