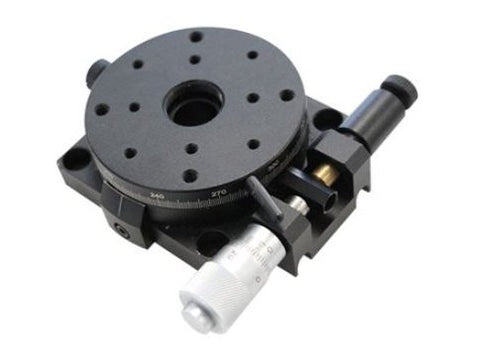

MSE PRO™ Hard Aluminum Rotation Stages (Table Diameter φ60mm)

MSE PRO™ provides Hard Aluminum Rotation Stages (Table Diameter φ60mm). Manual Rotation Stages are precision-engineered platforms designed for accurate and smooth linear positioning in a variety of applications. These stages feature high-quality construction and finely calibrated adjustment mechanisms, allowing for precise control and repeatable positioning. Ideal for laboratory setups, optical alignment, and testing environments, manual translation stages offer exceptional stability and ease of use. With various travel ranges, load capacities, and mounting options, they provide versatile solutions for tasks requiring reliable manual motion control in research and industrial settings.

Key Features

  • The table can be rotated 360° for coarse adjustment.
  • Can perform ±5° fine adjustment, micrometer drive, spring reset, high resolution, no backlash.
  • Precision shaft system design, adjustable shaft clearance, good stability.
  • 360° markings on the circumference for easy reading.
  • There are connection holes with standard hole spacing on the upper and lower parts, which is convenient for connecting with other translation stages to form a multi-dimensional translation stage.

Table diameter

φ60mm

Drive mode

Manual main drive (micrometer head fine adjustment drive)

Adjustment range

Coarse adjustment 360° Fine adjustment ±5°

Minimum marking

Minimum reading

2'

Minimum adjustment

15" (reference)

Loading

5kg

Table end jump

60μ

eccentric

30μ

Table parallelism

60μ

Deadweight

0.5kg

Material

Hard aluminum

Surface treatment

Anodized black



MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
