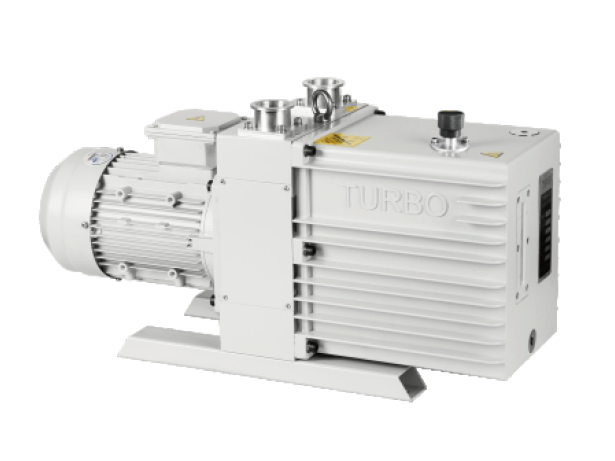

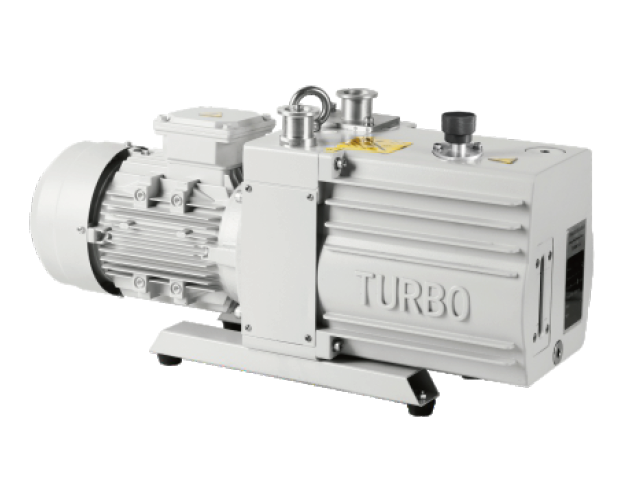

MSE PRO High-Performance Two Stage Rotary Vane Vacuum Pump
SKU: MA0747
MSE PRO™ High Performance Two Stage Rotary Vane Vacuum Pump
MSE Supplies offers a High-Performance Vacuum Pump Series engineered for medium to high vacuum applications with various pumping speed options. These mechanical pumps utilize corrosion-resistant materials and feature a two-stage positive displacement design with rotating vanes for enhanced efficiency and durability. Equipped with a built-in active anti-backflow valve, they ensure reliable protection against oil backflow when stopped. The adjustable gas ballast allows precise control of water vapor discharge to suit different process requirements, while the stable forced oil supply ensures low-noise, steady operation under high pressure. Fully compatible with MSE Supplies' vacuum ovens, these pumps are easy to maintain due to their simplified component design.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Applications
- Analytical instruments
- Laboratory bench top vacuum
- Vacuum oven
- Leak detectors, helium
- Research and development
- Coating technology
- Glovebox
Technical Data:
| SKU# | MA0747 | MA0748 | MA0749 |
| Dimension (mm) | 584x175x285 | 660x234x350 | 720x234x350 |
| Pumping speed (m3/h) | 30 | 40 | 60 |
| Pumping speed (CFM) | 17.7 | 23.5 | 35.3 |
| Voltage (V) | 110 | ||
| Motor power (kW) | 0.75 | 1.1 | 1.5 |
| Partial pressure with the gas ballast closed (Pa) | 5 x 10-2 | 4 x 10-2 | 4 x 10-2 |
| Total pressure with the gas ballast closed (Pa) | 4 x 10-1 | ||
| Total pressure with the gas ballast open (Pa) | 6 x 10-1 | ||
| Water vapor removal capacity (g/h) | 800 | 1000 | 1100 |
| Connection port (Intake and exhaust valve) | KF25 | KF40 | |
| Ambient temperature (℃) | 8 ~ 45 | ||
| Volume of oil (min/max) (L) | 1.5 / 2.0 | 3.0 / 4.0 | 4.0 / 5.0 |
| Weight (kg) | 40 | 65 | 75 |
