MSE PRO High-pressure (0.7Mpa) Proton Exchange Membrane (PEM) Hydrogen Generator (6N), Max. Flow Rate 310mL/min - MSE Supplies LLC

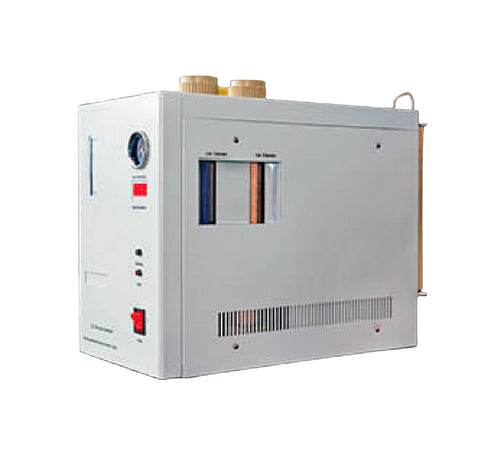

MSE PRO High-pressure (0.7Mpa) Proton Exchange Membrane (PEM) Hydrogen Generator (6N), Max. Flow Rate 310mL/min

SKU: MA2265

  • $ 7,19995
  • Save $ 80000

MSE PRO™ High-pressure (0.7Mpa) Proton Exchange Membrane (PEM) Hydrogen Generator (6N), Max. Flow Rate 310mL/min

This Hydrogen Generator with max. flow rate 310mL/min is used to generate ≥99.9999% purity hydrogen by PEM technology. The proton exchange membrane only allows water and positive ions to cross between compartments. In the chromatographic analysis, when the hydrogen output pressure exceeds 0.4MPa, the detection data will be more stable and reproducible, which is quite suitable to choose this high-pressure (0.7Mpa) one. When a direct current is utilized in the electrolyzer, water is supplied to either the anode or oxygen electrode and undergoes oxidation, producing oxygen and protons. Simultaneously, electrons are released. The H+ ions then travel through the PEM to reach the cathode, or hydrogen electrode, where they combine with electrons from the opposite part of the circuit and form hydrogen gas.

It is a versatile product used in various applications such as gas chromatography (GC), ICP-MS as a collision gas, hydrogenation reactors, fuel cells, and emissions test equipment. It offers a practical alternative to traditional gas cylinders, making it the preferred solution for on-site gas production in laboratory settings.

Features and Advantages:

  • Higher pressure (up to 0.7Mpa).
  • Higher hydrogen purity (up to 99.9999%).
  • Produce hydrogen by electrolysis pure water, no corrosion and no pollution.
  • Unnecessarily to use the dangerous and expensive hydrogen cylinders.
  • Stable flow, safe and easy to use, own several alarms (over pressure alarm, water shortage alarm, water accumulated alarm).
  • Easy to operate, safe and reliable, simple daily use and maintenance.
  • High electrolysis efficiency, long-term use, purity and flow rate do not decay.
  • Can meet requirements of all kinds of GC.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variant of Hydrogen Generator. Please contact us for more information.

Specifications:

SKU MA2265
Hydrogen purity ≥99.9999%
Output flow rate (mL/min) 0-310
Output pressure (MPa) 0.02-0.7
Pressure stability (MPa) <0.001
Input power (W) <150
Dimensions (L*W*H, mm) 420×227×352
Power supply voltage (V) AC 110, 60Hz
Water quality requirements Deionized water or secondary distilled water (resistivity ≥1MΩ)
Built-in water storage tank 2L large capacity
Drying mechanism Molecular sieve drying cylinder
Machine weight (Kg) <15
