MSE PRO High-protection Intelligent Touchscreen Flow Rate Peristaltic Pump, Max Speed 600rpm
SKU: LS9002

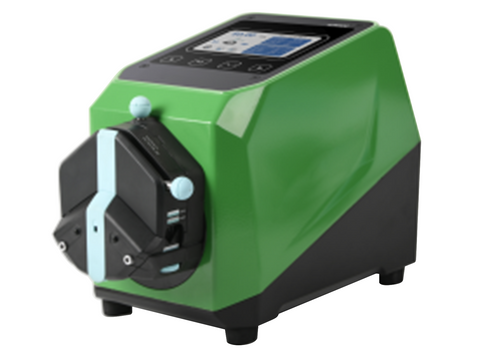

MSE PRO™ High-protection Intelligent Touchscreen Peristaltic Pump, Max Speed 600rpm
MSE PRO™ High-protection Peristaltic Pump with a housing protection rating of IP67. The machine features six types of sealing structures, making it resistant to harsh and humid environments, and ensuring long-term stable operation. It is suitable for a wide range of applications, including pharmaceuticals and biotechnology, the food and beverage industry, water treatment, laboratories and research institutions, and the chemical industry.
Features:
- Intelligent Control System: The 4.3-inch touchscreen display allows for easy operation, making parameter settings and calibration simple and convenient. The running status is displayed in real-time through animations.
- Low Shear Force: Peristaltic pumps exert minimal shear force on the fluid, making them ideal for transferring shear-sensitive liquids like cell suspensions or protein solutions.
- Reversible Operation: The pump direction can be easily reversed, simplifying system cleaning and fluid recovery.
- Strong Self-Priming Capability: Peristaltic pumps are self-priming, eliminating the need for additional priming processes.
This Peristaltic Pump comes with EasyPump pump head and 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Specifications:
| SKU# | LS9002 |
| Speed Range | 0.1~600 rpm (reversible) |
| Speed Resolution | 0.01 rpm |
| Flow Rate per Channel | 0.0053~3100 mL/min |
| Channel per Pump Head | Single Channel |
| Display | 4.3" LCD Touch Screen |
| Pump Head | EasyPump I as standard (For other types please contact us.) |
| Standard Tube Accessory |
Length: 2 m Inner Diameter x Wall Thickness: 6.4 x 1.6 mm (17#) |
| Power Supply | AC110V |
| Power | 110W |
| Timing Range | 0.1s-9999h |
| Quantitative Range | 0.1mL-9999L |
| Protection Rate | IP67 Waterproof |
| External Control Interface | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication. |
| Drive Size | 274×160×221mm |
| Drive Weight | 6.2kg |
Tubing Information:
| Tubing Size | mL/r | Flow Range |
| 0.8 mm x 1.6 mm (13#) | 0.053 | 0.0053-8 mL/min |
| 1.6 mm x 1.6 mm (14#) | 0.27 | 0.027-41 mL/min |
| 2.4 mm x 1.6 mm (19#) | 0.55 | 0.055-83 mL/min |
| 3.1 mm x 1.6 mm (16#) | 0.933 | 0.0933-140 mL/min |
| 4.8 mm x 1.6 mm (25#) | 1.967 | 0.1967-295 mL/min |
| 6.4 mm x 1.6 mm (17#) | 3.333 | 0.3333-500 mL/min |
| 7.9 mm x 1.6 mm (18#) | 4.3 | 0.43-645 mL/min |
