High Purity 99.99% Quartz Cylindrical Crucibles - MSE Supplies LLC

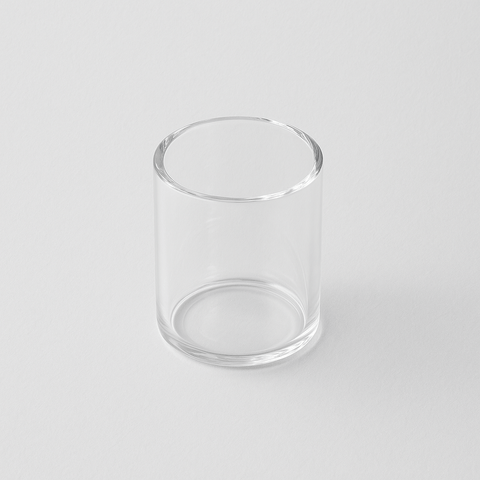

MSE PRO High Purity 99.99% Quartz Cylindrical Crucibles

SKU: JA1343

  • $ 1695
  • Save $ 200

Product details

Cylindrical Quartz crucibles (made with >99.99% high purity quartz) have excellent thermal shock resistance and are chemically inert to most elements and compounds, including virtually all acids, regardless of concentration, except hydrofluoric (HF) acid. Quartz crucibles can withstand high temperatures up to 1200 °C. Quartz crucibles are widely used for materials melting and chemical reactions in both materials science research and industry.

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

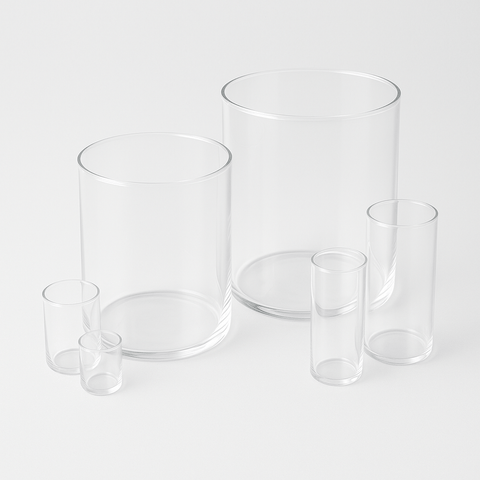

Standard Products and Specifications of Quartz Crucibles from MSE Supplies

Purity: >99.99% SiO2 (4N purity)

Maximum use temperature: 1200 °C

It is recommended to use the quartz crucibles below 1000 °C. The quartz crucible may crack or deform under continuous heating above 1000 °C. Crucibles are considered as consumables which are not covered by warranty.


SKU#
 Capacity (mL) OD (mm) Height (mm)
JA1343 5 19mm (0.75in) 26mm (1.02in)
JA1344 10 22mm (0.87in) 33mm (1.3in)
JA1345 20 28mm (1.1in) 40mm (1.57in)
JA1384 40 28mm (1.1in) 80mm (3.15in)
JA1346 100 40mm (1.57in) 91mm (3.58in)
JA1347 500 76mm (2.99in) 120mm (4.72in)
JA1348 800 100mm (3.94in) 120mm (4.72in)
JA1575 1000 100mm (3.94in) 150mm (5.9in)

Dimensions can be customized upon requested. The dimensions listed above are for reference only. Please contact us if you need tight tolerance. Covers are available with additional cost. Please contact us at sales@msesupplies.com for customization.
