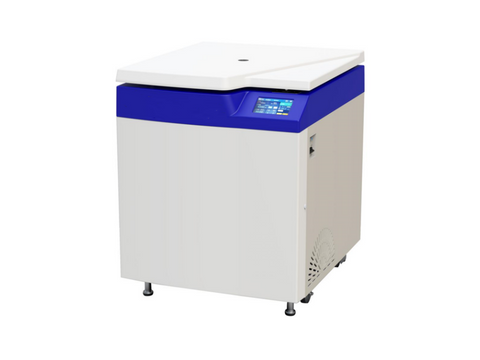

MSE PRO™ High-Speed Refrigerated Centrifuge (21,000 RPM, 50,400 RCF)
The MSE PRO™ High-Speed Refrigerated Centrifuge is a cutting-edge, high-performance centrifuge designed for advanced laboratory applications, including molecular biology, protein analysis, DNA/RNA extraction, and clinical diagnostics. With its powerful intelligent control system and precise temperature regulation, it ensures optimal performance for a wide range of scientific research and medical uses. Featuring an intuitive touchscreen interface and customizable program settings, this centrifuge offers unmatched versatility, efficiency, and safety for laboratories requiring high-speed separation and sample preparation.
-
High-Speed Performance: Achieves a maximum speed of 21,000 rpm with a relative centrifugal force of up to 50,400 ×g, making it ideal for high-demand applications in molecular biology and clinical research.
-
Advanced Touchscreen Control: The large TFT touchscreen provides an intuitive interface, allowing real-time display and monitoring of operation parameters for enhanced usability.
-
Versatile Programming Options: Supports up to 100 custom programs with 10-step processing, perfect for complex experimental needs requiring precise control over separation conditions.
-
Comprehensive Safety Features: Equipped with advanced protection mechanisms, including rotor recognition, imbalance detection, and electronic door locking, ensuring safe and reliable operation.
-
Environmentally Friendly Refrigeration: Uses an eco-friendly R404a refrigerant and high-performance compressor, maintaining consistent temperatures between -20°C and +40°C with precision control for sensitive samples.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Refrigerated Centrifuges. Please contact us for more information.
Technical Specification:
For accessories, please Contact Us for detail information.
| SKU |
MA1188 |
| Max speed |
21,000 r/min |
| Max centrifugal force |
50,400 RCF |
| Max capacity |
6x500mL |
| Speed accuracy |
±10 r/min |
| Time setting |
1 s ~ 99 min 59 s |
| Temperature Control Range |
-20 °C to +40 °C |
| Temperature Control Accuracy |
±1 °C |
| Noise |
<65dB(A) |
| Power supply |
110 V
|
| Consumption |
5 kW |
| Dimension(L×W×H) |
900 mm × 760 mm × 1005 mm |
| Packing size(L×W×H) |
1020 mm × 880mm × 1105 mm |
| Net weight (No rotor) |
350kg |
The rotors are sold separately.

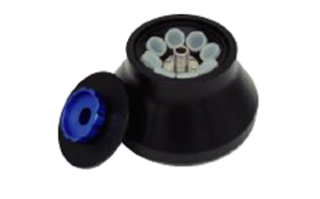

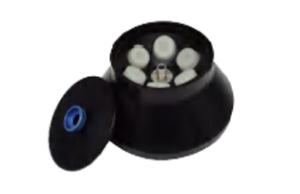

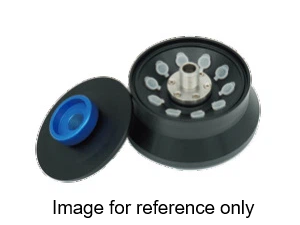

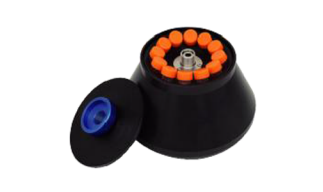

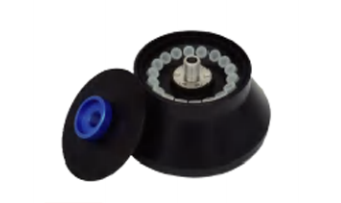

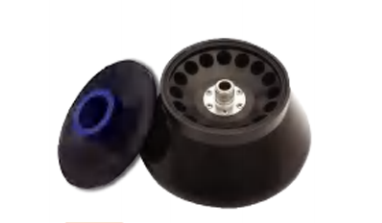

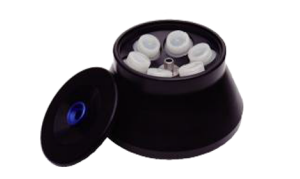

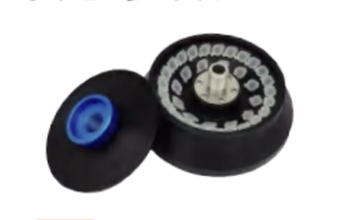

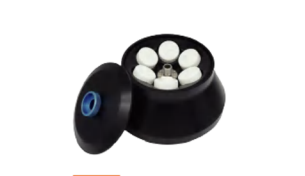

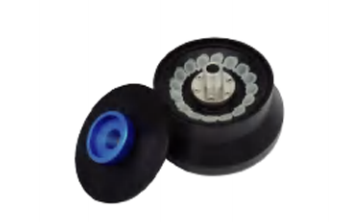

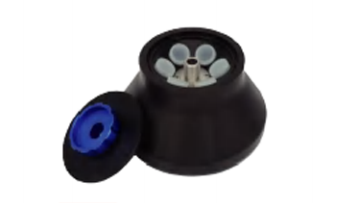

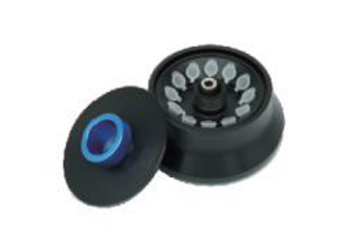

Compatible Rotors:
| Rotor Name and Model |
Capacity |
Maximum Speed |
Maximum Relative Centrifugal Force (×g) |

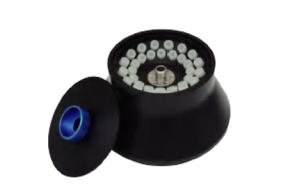

| Rotor 1 (Angle) |
36 × 1.5mL / 2.2mL |
21,000 rpm |
50,400 ×g |
| Rotor 2 (Angle) |
16 × 10mL |
21,000 rpm |
50,400 ×g |
| Rotor 3 (Angle) |
16 × 5mL |
21,000 rpm |
50,400 ×g |
| Rotor 4 (Angle) |
12 × 20mL |
16,500 rpm |
31,100 ×g |
| Rotor 5 (Angle) |
18 × 10mL |
21,000 rpm |
50,400 ×g |
| Rotor 6 (Angle) |
8 × 50mL |
18,000 rpm |
35,047 ×g |
| Rotor 7 (Angle) |
6 × 70mL |
15,000 rpm |
25,700 ×g |
| Rotor 8 (Swing Bucket) |
4 × 750mL |
4,000 rpm |
3,780 ×g |
| Rotor 9 (Swing Bucket) |
4 × 50mL |
5,000 rpm |
4,390 ×g |
| Rotor 10 (Swing Bucket) |
8 × 50mL |
5,000 rpm |
4,390 ×g |
| Rotor 11 (Swing Bucket) |
32 × 15mL |
5,000 rpm |
4,390 ×g |
| Rotor 12 (Swing Bucket) |
6 × 300mL |
11,000 rpm |
19,650 ×g |
| Rotor 13 (Swing Bucket) |
6 × 500mL |
9,000 rpm |
14,400 ×g |
| Rotor 14 (Angle) |
6 × 50mL |
20,000 rpm |
43,000 ×g |
| Rotor 15 (Angle) |
8 × 100mL |
14,000 rpm |
26,952 ×g |
| Rotor 16 (Angle) |
6 × 250mL |
12,000 rpm |
22,470 ×g |
| Rotor 17 (Angle) |
32 × 15mL |
14,000 rpm |
34,512 ×g |
| Rotor 18 (Swing Bucket) |
96 × 10mL |
5,000 rpm |
4,390 ×g |
| Rotor 19 (Swing Bucket) |
72 × 15mL |
5,000 rpm |
4,390 ×g |
| Rotor 20 (Swing Bucket) |
20 × 50mL |
5,000 rpm |
4,390 ×g |
| Rotor 21 (Microplate) |
2 × 2 × 96 Microplates |
4,000 rpm |
2,236 ×g |

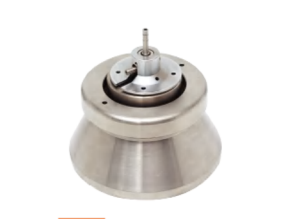

| Rotor 22 (Continuous Flow) |
1,000mL (Stainless Steel) |
14,000 rpm |
21,500 ×g |
| Rotor 23 (Continuous Flow) |
3,000mL (Stainless Steel) |
8,000 rpm |
9,500 ×g |
| Rotor 24 (Continuous Flow) |
1,000mL (Titanium Alloy) |
14,000 rpm |
28,100 ×g |
| Rotor 25 (Continuous Flow) |
3,000mL (Titanium Alloy) |
8,000 rpm |
14,800 ×g |
| Rotor 26 (Angle) |
12 × 15mL |
16,000 rpm |
30,194 ×g |
For other accessories, please Contact Us for detailed information.
