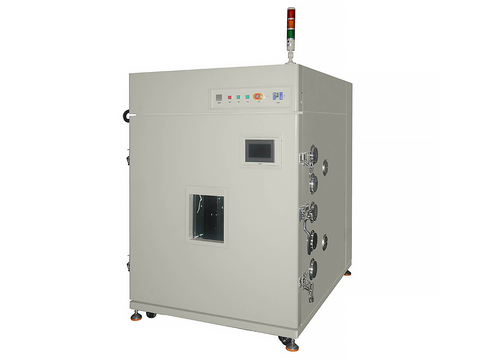

MSE PRO High Temperature Aging Test Chamber for Battery and Electronic Research, 720L
SKU: MA2206
MSE PRO™ High Temperature Aging Test Chamber for Battery and Electronic Research, 720L
MSE Supplies offers a high temperature aging test chamber. The chamber is primarily utilized for testing the reliability of battery and electronic products, components, and other materials through high temperatures. It is widely used for the aging test for electronic products, solar panel, plastic products, especially for battery temperature aging test.
Technical Specifications:
Product SKU# | MA2206 |
Temperature Range | RT+10 ℃ ~ +150 ℃, can be customized |
Temperature Variation | ± 0.3 ℃ |
Temperature Accuracy | ≤ ± 0.1 ℃ |
Temperature Uniformity | ≤ ± 2.0 ℃ (No load) |
Observation Window (WxH) |
300 x 300 mm Explosion-proof glass with explosion-proof film |
Cooling Method | Air cooling |
Control Mode | Touch screen programmable control PLC |
Test Chamber Material | SUS304 polished stainless steel, 1mm thickness, sprayed Teflon insulation |
External Material | Galvanized plate, power coating, high temperature plasticization, 1.2mm thickness |
Testing Hole Diameter | 100 mm |
Testing Hole Number | 2 pcs |
Volume | 750 L |
Chamber Dimensions (WxHxD) | 1000 x 1200 x 600 mm |
Outside Dimensions (WxHxD) | 1200 x 1815 x 920 mm |
Power Supply | 208V Three Phase, can be customized |
Weight | 600 kg |
MSE Supplies offers different types and capacities of the test chambers, please contact us to discuss your needs.
