MSE PRO Hydraulic Battery Electrode Die Cutter For Pouch Cell
SKU: BR0292

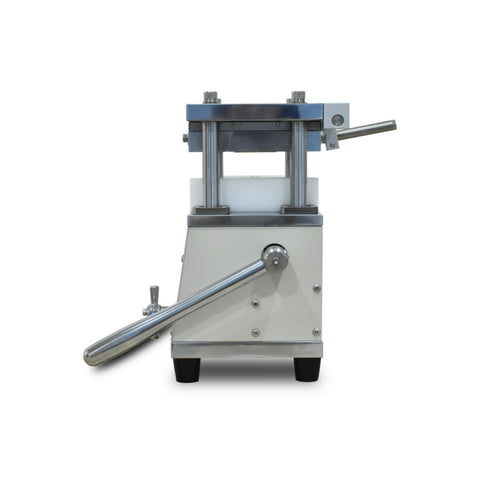

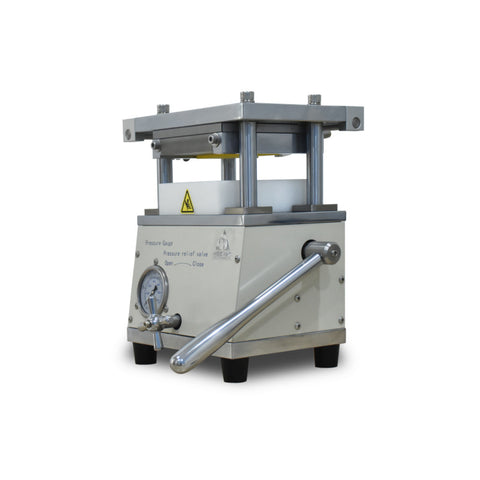

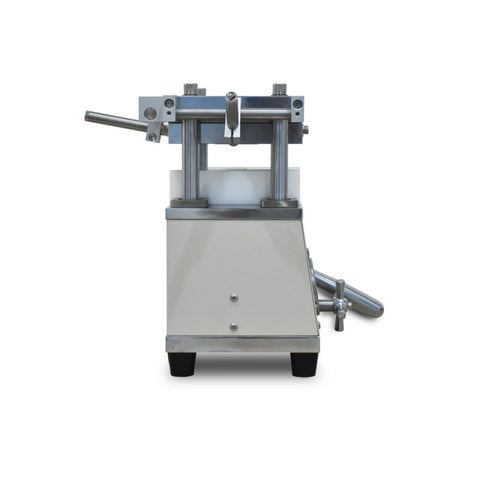

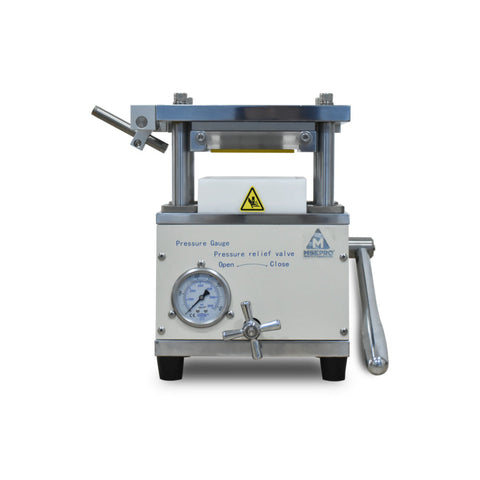

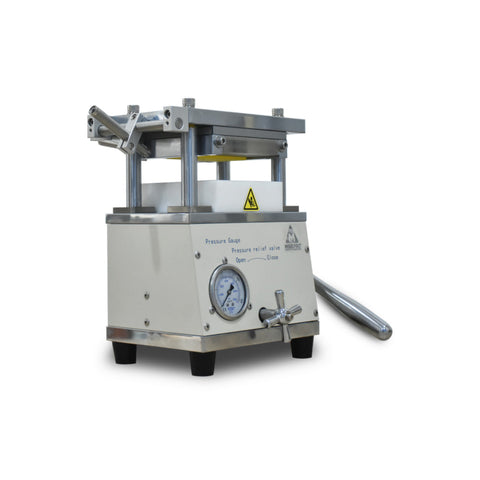

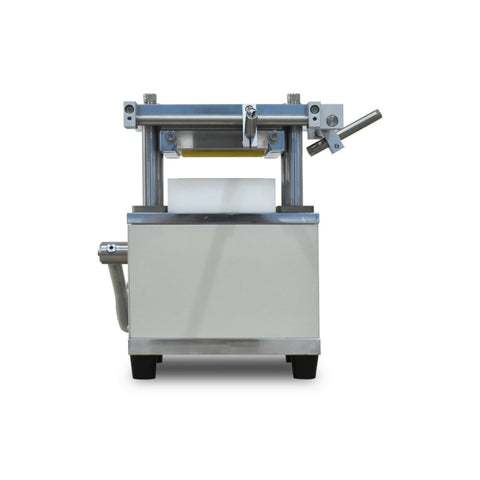

MSE PRO™ Hydraulic Battery Electrode Die Cutter For Pouch Cell
MSE Supplies offers a manual electrode die cutter machine adopting hydraulic cutter method. This hydraulic battery electrode die cutter is mainly used for pouch cell electrode sheet cutting for stacking pouch cell battery. This model is compatible with glove boxes. If utilized in a glove box, please periodically inspect the seal to detect any oil leak.
Customized cutting dies are available. Please contact us for more detailed information.
PRODUCT SPECIFICATION
| Product number (SKU#) | BR0292 |
| Included Die Size (2pcs) |
72*38mm or 74*40mm (Standard) Max. 120*100mm, can be customized |
| Knife lifetime | Lift more than 30000 times |
| Pressure | 7~10MPa |
| Dimension | 330*290*330mm |
| Weight | 30kg |
After cutting the electrode, you need "Pouch Cell Case Forming Machine" and "Sealer" to make the pouch cell.
