MSE PRO Hydraulic Sealing Machine For Cylindrical Cell - MSE Supplies LLC

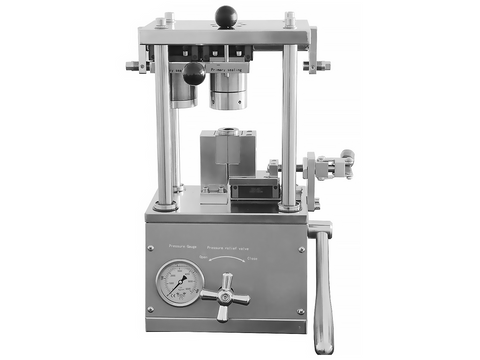

MSE PRO Hydraulic Sealing Machine For Cylindrical Cell

SKU: BR0282

  • $ 3,99695
  • Save $ 48000

MSE Supplies offers a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design makes it compatible inside a glove box, preventing the contamination of electrolyte materials during cell assembly. This machine is simply operated with safety protection features.

SPECIFICATIONS

    Product Number (SKU#)

    BR0282

    Driving Force

    Manual hydraulic pressing up to 5T

    Pressure Gauge

    0-3500 psi (0-250 kg/cm2)

    Body Material

    Stainless Steel

    Product Dimensions (LxWxH)

    220 mm x 170 mm x 360 mm

    Net Weight

    32 kg

    Crimping Die Included

    Options for CR123/18650/26650/32650/21700/AA/AAA

    Each type of cylinder cell can only be sealed by certain model of equipment. Please contact us to check the specific model number and price. Customized die for other cylindrical cell types is available upon request.

    Note: It is necessary to groove the opening end of the cylindrical case. MSE Supplies also offers such grooving machine before sealing the cap.
