MSE PRO Ion Sputtering Coater

SKU: MA0602

  • $ 6,64995
  • Save $ 79800

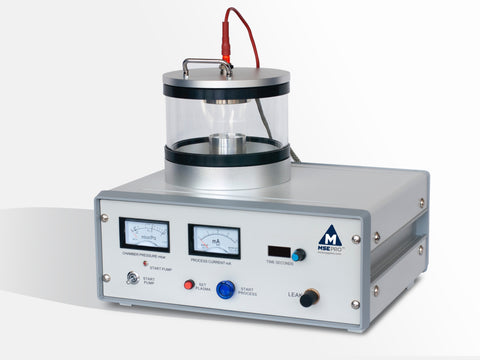

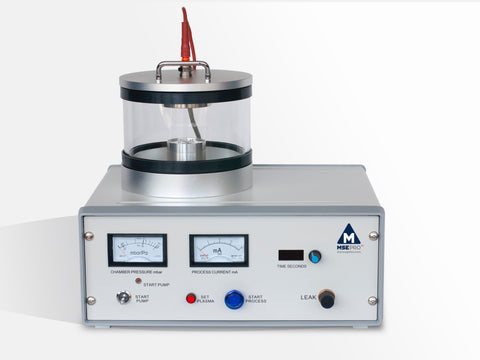

MSE PRO™ Ion Sputtering Coater

MSE Supplies offers an Ion Sputtering Coater that is ideal and designed for lab SEM sample preparation. It is a coater that applies a thin conductive film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM. It is widely used to deposit gold/Au coatings on non-conductive samples for improved imaging results and it is also an excellent choice for surface treatment.

When using an appropriate vacuum pump, it can quickly reach working vacuum pressure within 2 minutes. It is easy to use and operate.

Working vacuum pressure can be achieved quickly when using proper vacuum pump. It is user friendly and easy to operate, it can quickly reach working vacuum pressure within 2 minutes.

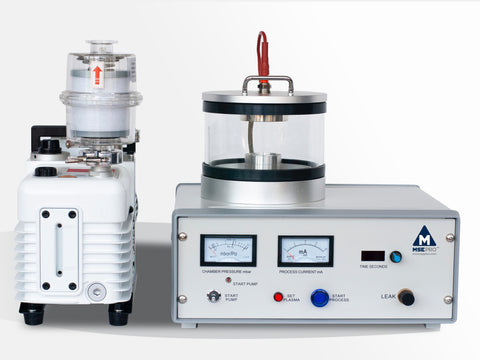

Vacuum pump as standard accessory is included.

Brand: MSE PRO

Manufacturer: MSE Supplies LLC

Technical Specifications

SKU# MA0602
Vacuum Pump Set (Oil required) Rotary Vacuum Pump
Rotary Pumping Speed 50Hz: 8m3/h (2.2L/s)
Max Sputtering Current 0-20  mA
Vacuum Limit  Pa
Working Pressure 30-7  Pa
Vacuuming Time < 5  Min (to 2Pa)
Vacuum Measure Measuring range from atmosphere to 2X10-2mbar
Chamber φ150 * 120mm, Scratch resistant quartz glass
Magnetron Target Source (Not included) Target size φ50*0.1 mm/Target source: Au, Ag, Pt
Operation Method Instruction Manual
Weight  45 Kg
Size, L*W*H, (mm) 360*300*380
Power Supply AC 110V 60Hz
Power Consumption (W) < 1500
Warranty One year limited warranty with lifetime product support
