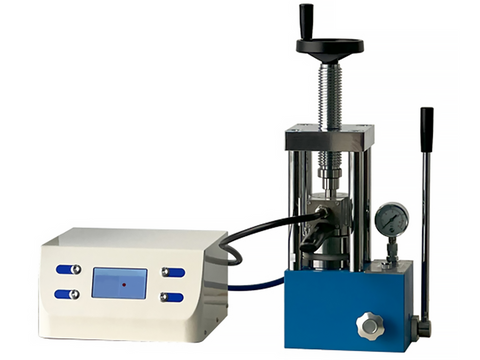

MSE PRO Lab Scale 15-Ton Manual Heated Pellet Press (300°C)
SKU: PR0399A
MSE PRO™ Lab Scale 15-Ton Manual Heated Pellet Press (300°C)
MSE PRO™ 15T manual hydraulic heated lab press is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications. The water-cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase with additional cost).
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
| Brand | MSE PRO™ |
| Product SKU # |
PR0399A (without water chiller) PR0399B (with water chiller) |
| Pressure range | 0-15 Metric Tons |
| Heating range | up to 300 °C |
| Diameter of piston | 80 mm |
| Temperature control accuracy | 0.1 °C |
| Cooling mode | Air / Water cooling |
| Pellet sample size | ＜20mm (for larger size please contact us to confirm) |
| Host size (KxPxH) | 245mm x 175mm x 415 mm |
| Overall dimension (LxWxH) | 800mm x 470mm x 415 mm |
| Power supply | 110V/300W |
| Net weight | 60kg |
| Warranty | Limited one year warranty, excluding damages caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
