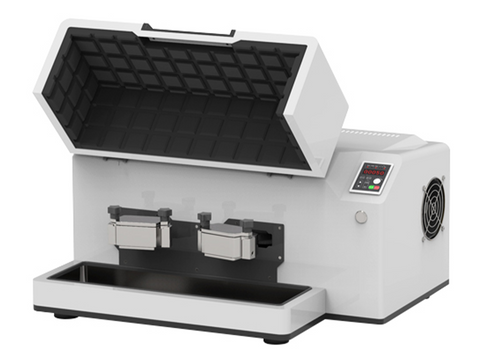

MSE PRO Laboratory Nano Scale Vibration Ball Mill, 250mL (2×125mL)
SKU: MA0940
MSE PRO™ Laboratory Nano Scale Vibration Ball Mill, 250mL (2×125mL)
MSE PRO™ Laboratory Nano Scale Vibration Ball Mill offers multiple material options for grinding jars with a maximum capacity of 125ml. The product provides excellent crushing and grinding effects in just a few minutes or even seconds, with intensity and speed being its main features.
You must purchase specific milling jars to use it. Please select the options carefully according to your specific needs.
- Fast Grinding: Provides excellent crushing and grinding effects in a very short time, ideal for efficient experimental needs.
- Powerful Vibration: Delivers high energy through intense vibrations, ensuring thorough grinding of the sample.
- Multiple Options: Offers grinding jars made from various materials, with a maximum capacity of 125ml, catering to different sample requirements.
- Efficient and Energy-Saving: High-energy density vibration grinding improves efficiency while saving energy.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Ball Mills. Please contact us for more information.
Specifications:
| SKU# | MA0940 |
| Sample Characteristics | Hard | Medium to Low Hardness | Brittle | Dry | Viscous | Fibrous | Soft | Elastic |
| Processing Types | Mechanochemical | Mechanical Alloying | Crushing | Mixing | Homogenizing |
| Maximum Sample Size | < 10mm |
|
Particle Size Range |
≈ 100nm |
| Number of Jars | 2 |
|
Jar Volume |
125mL |
| Jar Material |

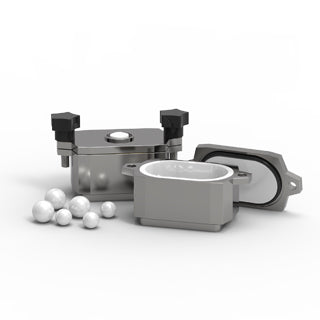

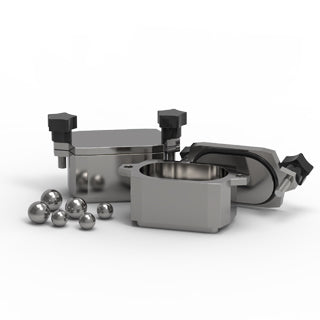

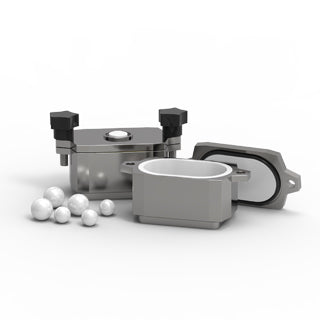

Zirconia, Tungsten Carbide, Stainless Steel, PTFE |
| Jar Fixing Method | Threaded Fastening |
| Grinding Method |
Dry Grinding | Wet Grinding | Vacuum Grinding
|
| Motion Type | Horizontal Arc Reciprocal Motion |
| Motion Frequency | 180-1800rpm |
| Crushing Time | 10-60s |
| Functions | Continuous Operation | Intermittent Operation | Timer | Speed Control | Data Storage | Power-off Memory | Overload Protection |
| Additional Functions | Quick Fastening | Soundproof Layer | Stainless Steel Workbench |
| Electrical Description | 100-120V|200-240V AC, 50-60Hz, 750W |
| Net Weight | 95kg |
| Dimensions (mm) | 680×540×320 (W×L×H) |
| Certificates | CE |
