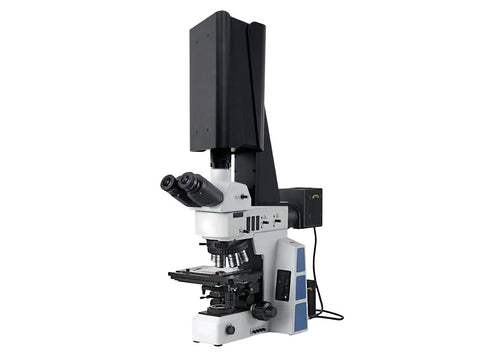

MSE PRO Laboratory Visible & Near Infrared Hyperspectral Imager
SKU: MA7016
MSE PRO™ Laboratory Visible & Near Infrared Hyperspectral Imager
MSE Supplies offers a Laboratory Visible & Near Infrared Hyperspectral Imager which is developed for microscopic measurement applications. It can quickly collect hyperspectral data and fine spatial images of samples in the microscopic field of view within the range of 400nm-1000nm, and then mine more detailed information in the microscopic state through data processing and analysis. It can be widely used in biomedicine, life sciences, materials science, evidence analysis, microelectronics and other fields.
MSE supplies provides hyperspectral imagers with different wavelengths and measurement accuracy. please contact us for more information.
Technical Specifications:
SKU | MA7016 |
Spectrophotometric Mode | Transmission Grating |
Spectral Range | 400-1000nm |
Number of Spectral Bands | 1200(1x), 600(2x), 300(4x) |
Spectral Resolution | 2.5nm |
Slit Width | 25µm |
Transmission Efficiency | >60% |
F Number | F/2.6 |
Detector | CMOS |
Spatial Pixels | 1920(1x), 960(2x), 480(4x) |
Pixel Size | 5.86 µm |
Effective Pixel Depth | 12bits |
Standard Lens Focal Length | 25mm |
Working Distance | 200mm-∞ |
Vertical field of view (FOV) | >25° |
Image Resolution | 1920 x 1920 |
Acquisition Speed | < 15s |
Stray Light Ratio | < 0.5% |
Data Interface | USB 3.0 |
Lens Mount | C-Mount |
Optional Focal Length | 8mm/16mm/ 25mm/35mm |
Power Supply | Built-in battery, external power supply |
Weight | < 4kg |
Operating Temperature | 0~40℃ |
Storage Temperature | 0~50℃ |
